LensTip.com

Lens review

Tamron 24 mm f/2.8 Di III OSD M 1:2

30 June 2020
Maciej Latao

8. Vignetting

First let's check vignetting performance of the tested Tamron on the smaller sensor – appropriate thumbnails can be found below.

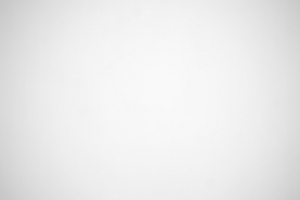

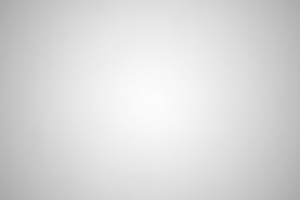

A7RII, APS-C, f/2.8 A7RII, APS-C, f/4.0
Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting


The aberration remains completely visible at the maximum relative aperture where it reaches 32% (−1.12 EV). It's a lot, after all we are talking about the smaller APS-C sensor. It can also be felt by f/4.0, amounting to 20% (−0.63 EV) and it becomes almost imperceptible by f/5.6, where we got a result of 13% (−0.40 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let's progress to full frame – appropriate thumbnails can be found below.

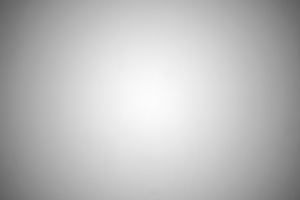

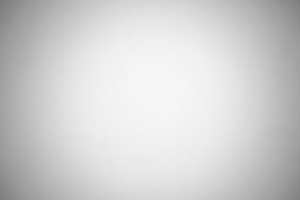

A7RII, FF, f/2.8 A7RII, FF, f/4.0
Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting

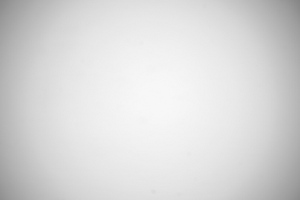

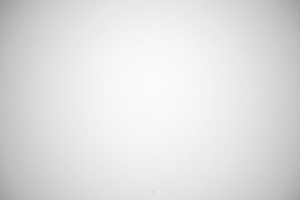

A7RII, FF, f/5.6 A7RII, FF, f/8.0
Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting


In this case the results are really bad. By f/2.8 brightness loss in frame corners amounts to as much as 62% (−2.79 EV). What's more, stopping down is not especially satisfactory even if it helps a bit. By f/4.0 vignetting still reaches a very high level of 49% (−1.95 EV), by f/5.6 it decreases to 44% (−1.65 EV), and by f/8.0 it is 36% (−1.28 EV). A slight decrease can be also observed by f/11.0, where we got 32% (−1.11 EV). Further stopping down didn't have any measureable influence on the aberration, described in this chapter.

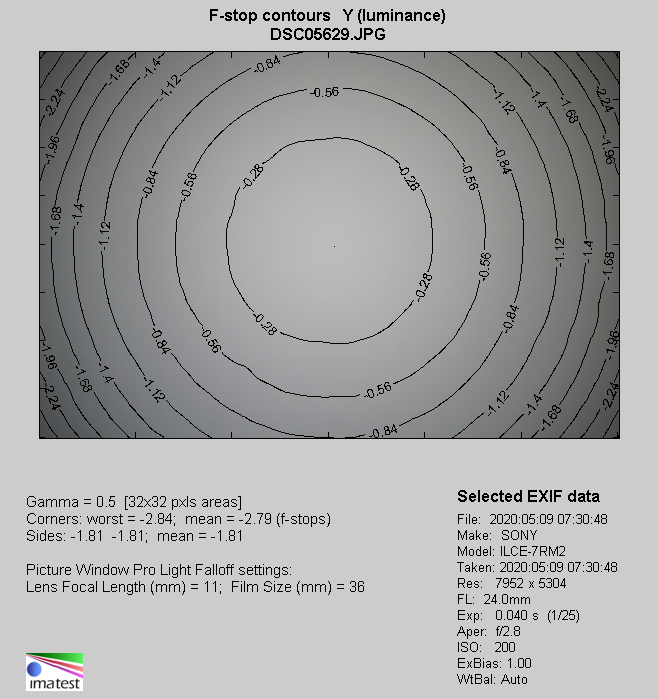

Sony A7RII, JPEG, f/2.8
Tamron 24 mm f/2.8 Di III OSD M 1:2 - Vignetting
