Lens review

Fujifilm Fujinon XF 50 mm f/1.0 R WR

22 December 2020
Maciej Latałło

8. Vignetting

Fujifilm bodies very often correct vignetting on JPEG files even if you switch all image correcting options off. That's why we had to check vignetting on JPEG and RAW files. Let's start with the first JPEG format.

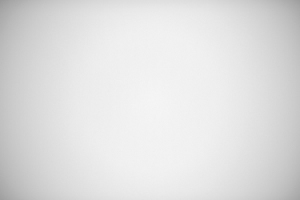

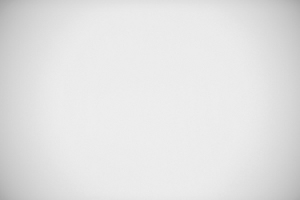

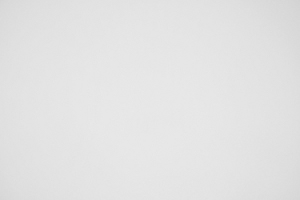

X-T2, JPEG, f/1.0 X-T2, JPEG, f/1.4
Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting

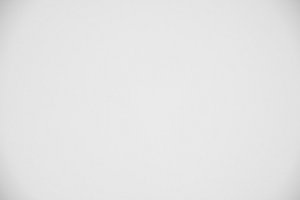

X-T2, JPEG, f/2.0 X-T2, JPEG, f/2.8
Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting


Despite an excellent aperture fastness you don't see here any significant problems. Vignetting is visible at the maximum relative aperture where it amounts to 34% (−1.22 EV). The situation improves very quickly on stopping down so by f/1.4 the aberration reaches 28% (−0.95 EV); by f/2.0 it decreases to 17% (−0.53 EV) and by f/2.8 it becomes imperceptible, being just 7% (−0.23 EV)


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Still the real level of vignetting you can determine only by examining RAW files – appropriate thumbnails you can find below.

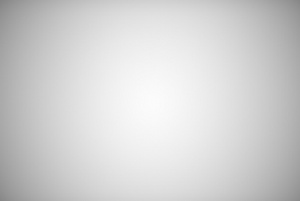

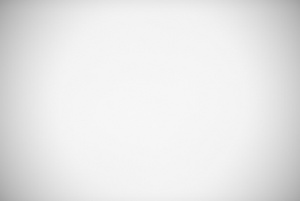

X-T2, RAW, f/1.0 X-T2, RAW, f/1.4
Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting

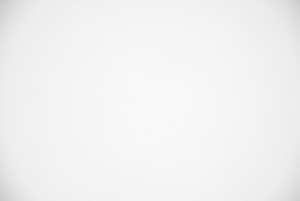

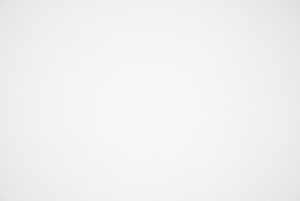

X-T2, RAW, f/2.0 X-T2, RAW, f/2.8
Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting


At the maximum relative aperture, you must take into account brightness loss of 45% (−1.73 EV). That's a lot but if you remind yourself that full frame 1.8-1.4 lenses with similar angles of view sometimes have results of 2-3 EV in this category, the overall assessment can't be bad. Especially that vignetting decreases very quickly on stopping down. By f/1.4 we got a result of 33% (−1.16 EV), by f/2.0 it decreases to just 18% (−0.57 EV), and by f/2.8 all vignetting problems end because its level drops to an imperceptible value of 9% (−0.27 EV). .

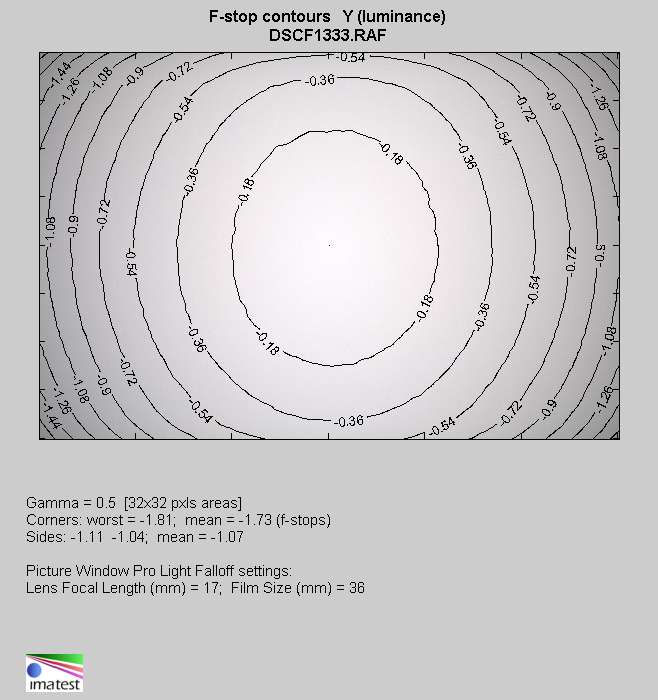

Fujifilm X-T2, RAW, f/1.0
Fujifilm Fujinon XF 50 mm f/1.0 R WR - Vignetting
