Sony FE 14 mm f/1.8 GM

20 April 2021
Maciej Latałło

8. Vignetting

First let's check the situation with vignetting on the smaller APS-C sensor – appropriate thumbnails you can find below.

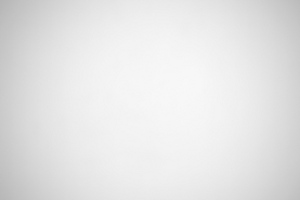

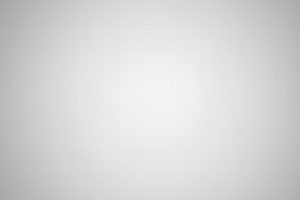

A7R III, APS-C, f/1.8 A7R III, APS-C, f/2.0
Sony FE 14 mm f/1.8 GM - Vignetting Sony FE 14 mm f/1.8 GM - Vignetting


So far there are no reasons to worry. At the maximum relative aperture vignetting is noticeable, amounting to 30% (-1.03 EV), but you can hardly call it high. By f/2.0 it decreases to 25% (-0.82 EV), and by f/2.8 it drops to a value of 16% (-0.50 EV). Further stopping down doesn't have any measureable influence on this aberration.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Taking into account relatively small physical dimensions of the Sony FE 14 mm f/1.8 GM and the parameters it offers we were really curious how it would deal with vignetting on full frame. Thumbnails, presented below, provide a clear answer to that question.

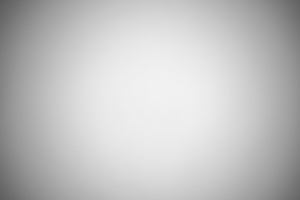

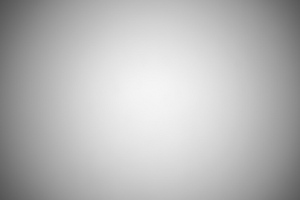

A7R III, FF, f/1.8 A7R III, FF, f/2.0
Sony FE 14 mm f/1.8 GM - Vignetting Sony FE 14 mm f/1.8 GM - Vignetting

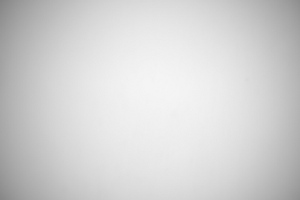

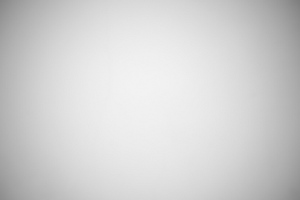

A7R III, FF, f/2.8 A7R III, FF, f/4.0
Sony FE 14 mm f/1.8 GM - Vignetting Sony FE 14 mm f/1.8 GM - Vignetting


The correction of vignetting certainly wasn't easy. At the maximum relative aperture brightness loss in frame corners is really high, amounting to 64% (-2.96 EV). To be honest, I am very pleasantly surprised because I expected results distinctly higher than 3 EV. After all even slower 2.8/14 models produced by Canon and Samyang had higher level of vignetting; only the huge Sigma A 1.8/14 fared better in this category.

Stopping down the aperture to f/2.0 decreases vignetting to 60% (-2.65 EV), and employing the f/2.8 aperture reduces it even more, to a level of 45% (-1.71 EV). Further stopping down has a very slight influence on the aberration, described here, because by f/4.0 it is 43% (-1.63 EV) and remains on the same level also on more significant stopping down.

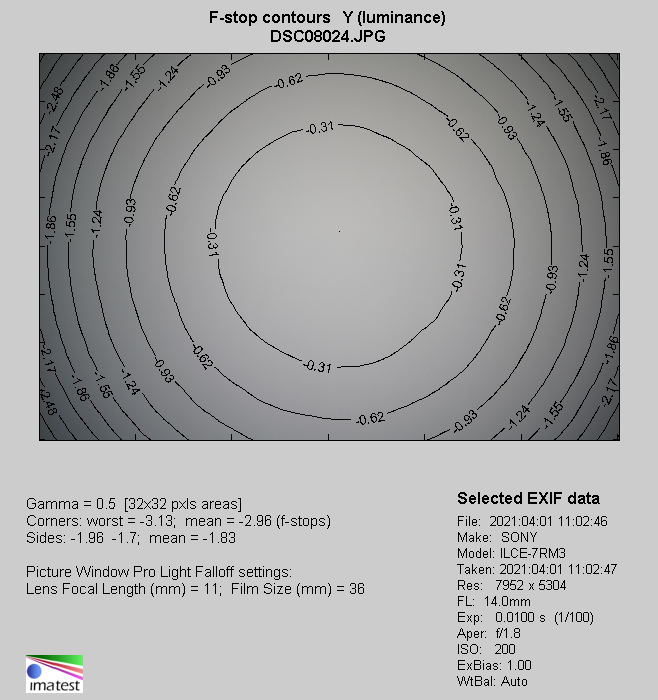

Sony A7R III, JPEG, f/1.8
Sony FE 14 mm f/1.8 GM - Vignetting
