LensTip.com

Lens review

Nikon Nikkor Z 50 mm f/1.2 S

1 June 2021
Maciej Latałło

8. Vignetting

First let's check vignetting performance on the smaller APS-C/DX sensor – appropriate thumbnails can be found below.

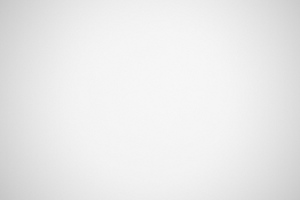

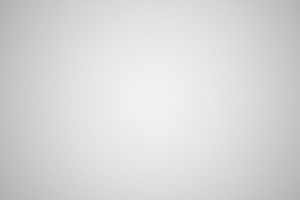

Z7, APS-C/DX, f/1.2 Z7, APS-C/DX, f/1.4
Nikon Nikkor Z 50 mm f/1.2 S - Vignetting Nikon Nikkor Z 50 mm f/1.2 S - Vignetting


At the maximum relative aperture vignetting is visible, reaching 26% (−0.87 EV), but this effect is not especially pronounced. On stopping down the aperture, by f/1.4, that aberration decreases to 18% (−0.57 EV). All problems end completely by f/2.0 where vignetting drops to an imperceptible value of 6% (−0.18 EV)


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to the bigger, full frame sensor vignetting becomes far more bothersome and the photos, presented below, prove that very well.

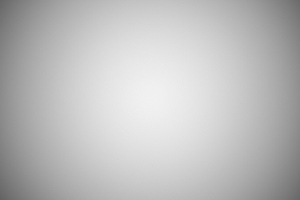

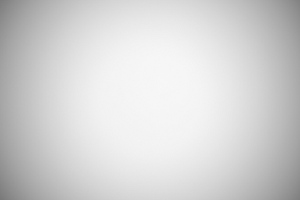

Z7, FF, f/1.2 Z7, FF, f/1.4
Nikon Nikkor Z 50 mm f/1.2 S - Vignetting Nikon Nikkor Z 50 mm f/1.2 S - Vignetting

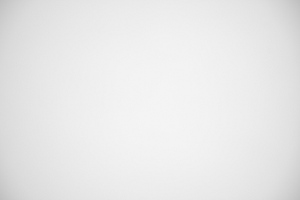

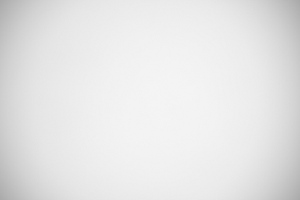

Z7, FF, f/2.0 Z7, FF, f/2.8
Nikon Nikkor Z 50 mm f/1.2 S - Vignetting Nikon Nikkor Z 50 mm f/1.2 S - Vignetting


At the maximum relative aperture light fall-off in the frame corners reaches a significant level of 57% (−2.43 EV). In this category the Nikkor fares better than the Sony 1.2/50 GM because that lens had vignetting of 63%. Still, because of the bulk of the Nikkor we didn't expect any other result of this duel.

By f/1.4 vignetting decreases to 49% (−1.92 EV), and by f/2.0 it drops to a value of 30% (−1.02 EV). More serious problems end near f/2.8, where vignetting, as measured by us, amounted to 21% (−0.68 EV). By f/4.0 that aberration decreases to 15% (−0.46 EV) and after that point it doesn't react to any further stopping down of the apperture. Here the Nikkor fares better than the Sony as the minimum vignetting level of the rival lens was 29%.

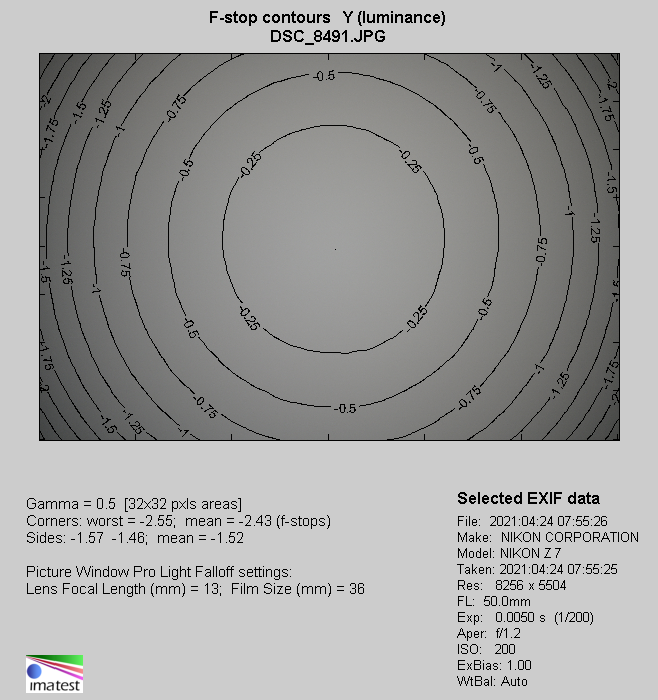

Nikon Z7, JPEG, f/1.2
Nikon Nikkor Z 50 mm f/1.2 S - Vignetting
