LensTip.com

Lens review

Canon EF-S 17-55 mm f/2.8 IS USM

23 September 2007
Arkadiusz Olech

4. Image resolution

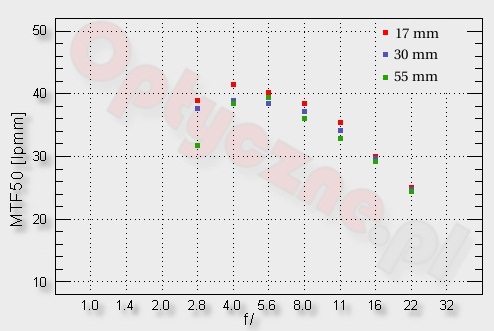

Before saying anything else, we have to admit that in the image sharpness category, the Canon 17-55 mm turns out to be fantastic. Within the whole focus range, for f/4.0 - f/5.6 stops, the tested MTF50 values reached a 40 lpmm level which is comparable with the best prime lenses. The Canon wide-open aperture test results are also worth mentioning. With the range of 17.30 mm the test results reached a high value of 38 lpmm, while the results of 32 lpmm for a 55 mm is a very good score. In brief, the stop range and focusing of the tested Canon gave very sharp pictures in the centre of the frame.

Canon EF-S 17-55 mm f/2.8 IS USM - Image resolution

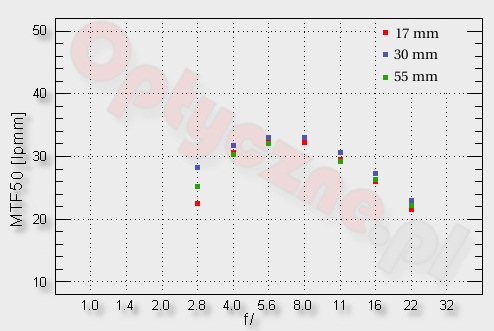

Although the situation of the frame edges isn't that great anymore, it's nothing to complain about. The decent level of 30 lpmm is much higher for all the focus ranges, as well as the most commonly used stop range of f/4.0 to f/11. A slight edge "blur" can only be obtained for wide-open aperture and focusing of 17 mm.

Canon EF-S 17-55 mm f/2.8 IS USM - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

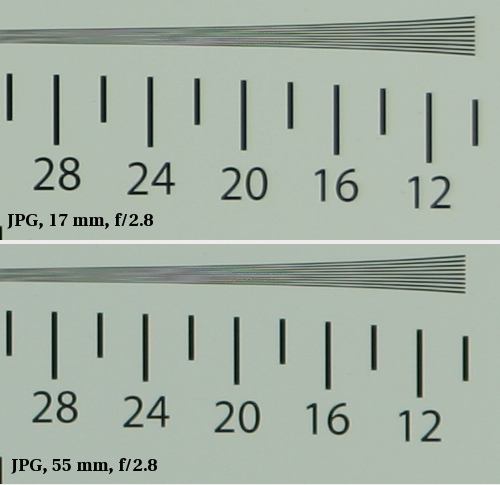

The picture below shows a part of the test chart. It was taken by the tested lens for peripheral focal lengths with a f/2.8 stop.

Canon EF-S 17-55 mm f/2.8 IS USM - Image resolution
