Lens review

Canon EF-S 17-55 mm f/2.8 IS USM

23 September 2007
Arkadiusz Olech

8. Vignetting

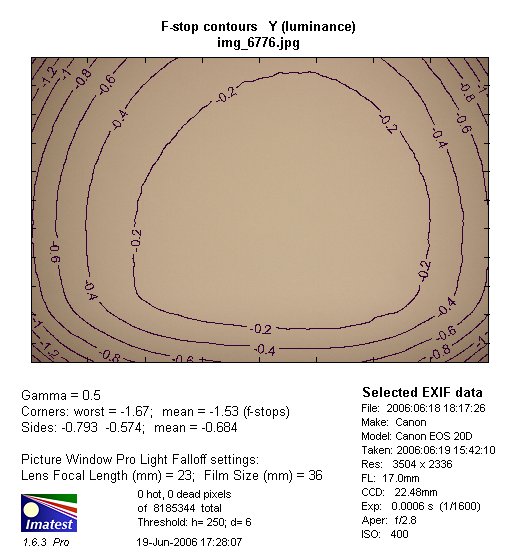

Since Canon's EF-S 17-55 mm is sizable and is supposed to project a picture on an APS-C class detector which is smaller than a 35 mm film clip, we were expecting very good test results in the vignetting category. In this case we were very disappointed to discover that for a 17 mm focal length and wide-open aperture the light falloff in corners was as high as 40% (-1.5% the stop value). Stopping down the lens helps a bit but it doesn't solve the problem. For f/4.0 the vignetting is 24%, for f/5.6 it is 17%, for f/8.0 it's still 15% and only for f/11 we reach the generally regarded unnoticeable level of 10%.

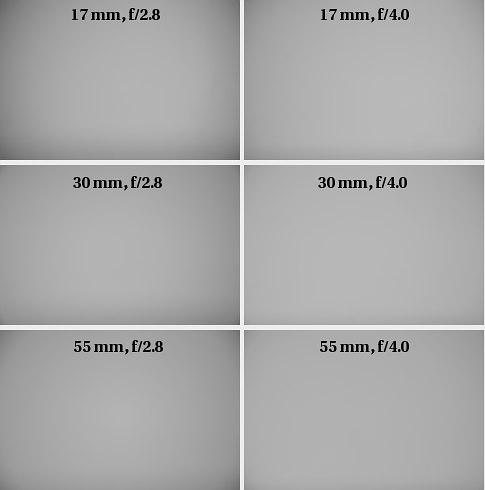

Canon EF-S 17-55 mm f/2.8 IS USM - Vignetting


The situation is better for longer focal however it is not perfect, especially for a lens which is priced 1000$. The light falloff for a focal length of 30 mm and f/2.8 in the frame angles was 32% (-1.1 the stop value). Stopping down the lens by one stop decreases the problem to 18%, by two stops - 10%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

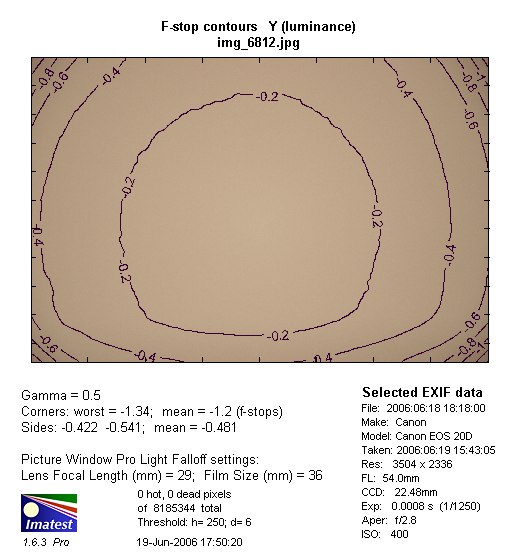

A very similar situation appears for the 55 mm focal length. Here, for a f/2.8 the light falloff drops to 34%, for f/4.0 - 17% and for f/5.6 it's only 7%.

Canon EF-S 17-55 mm f/2.8 IS USM - Vignetting

Canon EF-S 17-55 mm f/2.8 IS USM - Vignetting
