LensTip.com

Lens review

Canon EF-S 17-55 mm f/2.8 IS USM

23 September 2007
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

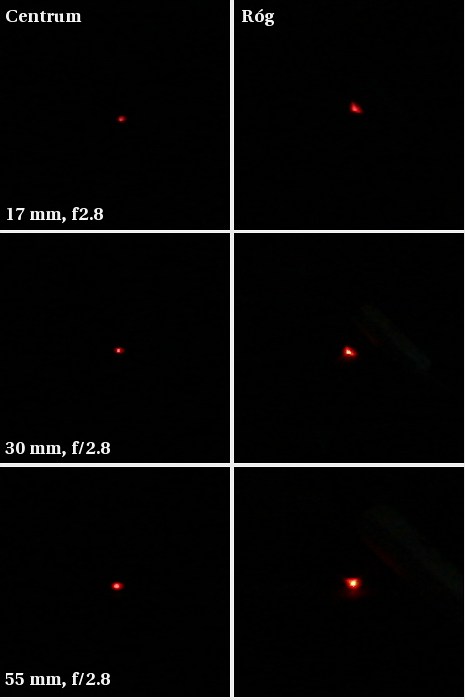

The coma is well corrected. It can be seen on the same level for every focal length and only for a wide-open aperture. After stopping down the lens to f/4.0 the problem basically disappears.

Canon EF-S 17-55 mm f/2.8 IS USM - Coma and astigmatism

The second commonly present abaxial failure - astigmatism - is very well corrected. The average difference between the horizontal and vertical MTF50 values measured in the center was only 4.6%.
