LensTip.com

Lens review

Pentax smc DA* 55 mm f/1.4 SDM

13 May 2009
Arkadiusz Olech

3. Build quality

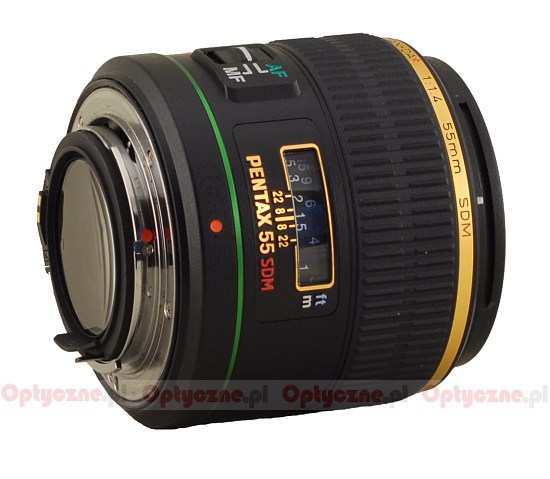

Looking at DA* 1.4/55 from the lens mount we find a solid and metal bayonet, inside which there’s a stationary rear lens that doesn’t change position when focusing. Then, on the lens body, we can see a legible distance scale, located behind a pane of glass, expressed in feet and meters. On the left side of it there’s a switch for autofocus mode (AF/MF). Next there’s a convenient , big, rubbery manual focusing ring that allows very precise work. It permits us to make adjustments both in AF and MF mode.

Pentax smc DA* 55 mm f/1.4 SDM - Build quality


Rotating the focusing ring causes the front system of lenses, which is maximally protruding for minimum focusing distance, to move. It doesn’t jut out over the body of the lens and has a non-rotating filter mount of 58mm diameter.

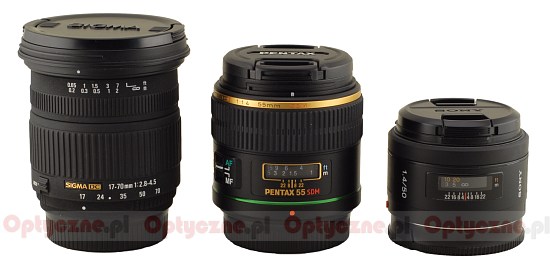

In the interest of having a strong, sealed body and a supersonic SDM motor, the new Pentax is larger than other 1.4/50 primes. However, it’s still slightly smaller than Canon 1.4/50 and significantly  smaller than the new Sigma of the same parameters. The picture below shows the Pentax standing between a multi-purpose Sigma 17-70 and Sony 1.4/50.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Pentax smc DA* 55 mm f/1.4 SDM - Build quality


This table shows the comparison of Pentax parameters with f/1.4, 50mm focal length lenses equipped with supersonic autofocus motor. That table, on the other hand, with the ones deprived of it.

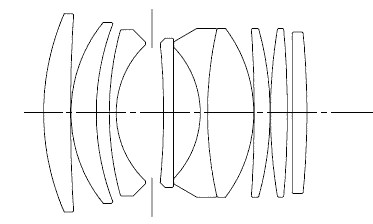

Inside the lens we find 9 lenses set in 8 groups. It’s the most complicated system of all 50s mentioned above. It’s even more interesting, as DA* 1.4/55 is the only lens designed for small APS-C sensors, while the others can operate with a full frame. There are also 9 diaphragm blades to form the minimal aperture of f/22, to complete the picture.

Pentax smc DA* 55 mm f/1.4 SDM - Build quality

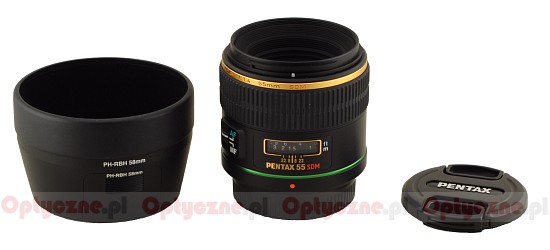

A buyer gets two caps, a lens hood and a black casing as supplied accessories.

Pentax smc DA* 55 mm f/1.4 SDM - Build quality
