Lens review

Canon EF 35 mm f/1.4L USM

29 May 2009
Arkadiusz Olech

8. Vignetting

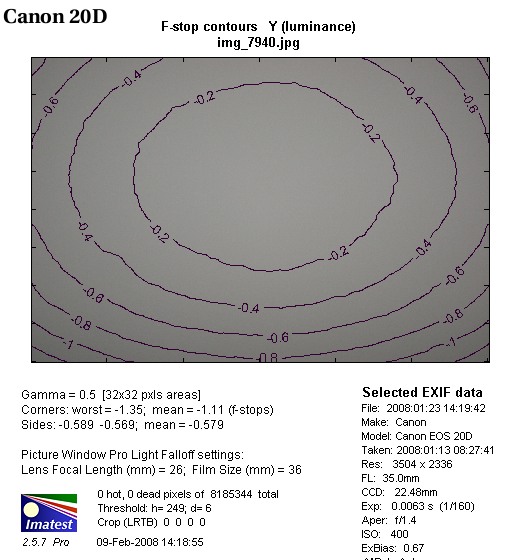

It’s another interesting category, which shows how much we gain using smaller detectors. On the Canon 20D, at maximum relative aperture, the illumination loss in the frame corners is 32% (-1.11 EV). It’s a lot and we are afraid to think what will happen on the full frame but it must wait a moment. Fortunately, on stopping down to f/2.0 the vignetting level decreases to 16% and by f/2.8 makes the problem practically disappear (8%).

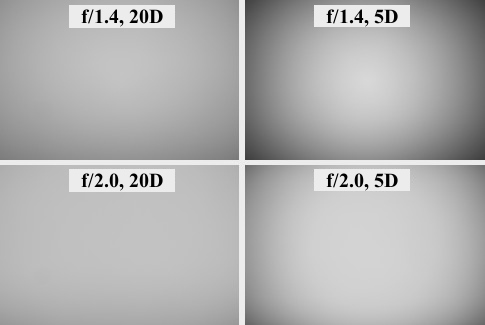

Canon EF 35 mm f/1.4L USM - Vignetting

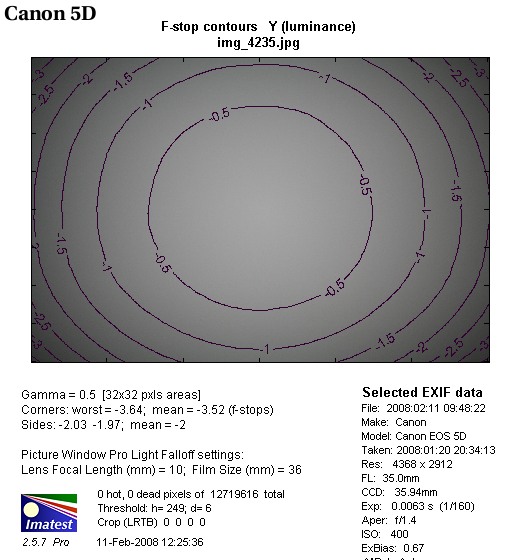

The situation we’ve observed on the 5D camera makes your hair curl and requires a new definition for the “high vignetting” notion. You can only describe the results as monstrous, gigantic, very, very huge vignetting because nothing else renders the effect when, at the maximum aperture, we lose 70% of the corner illumination (-3.5 EV). On stopping down the results are slightly better, which doesn’t mean good. By f/2.0 the vignetting reaches 50%, by f/2.8 – as much as 35% . by f/4.0 – 27% and by f/5.6 it decreases to the level of 22%. Only by f/8.0 we get the acceptable level of 18%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Such a significant vignetting level is not without influence on real life pictures. If you have a look at no. 10 and 11 miniatures you’ll notice that the cloud in the right-hand bottom corner, which seems to be black and stormy by f/1.4, is, in fact, white, like in another picture, taken by f/5.6…

Canon EF 35 mm f/1.4L USM - Vignetting


Canon EF 35 mm f/1.4L USM - Vignetting
