Tamron AF 18-200 mm f/3.5-6.3 XR Di II LD Aspherical (IF)

12 January 2011
Arkadiusz Olech

8. Vignetting

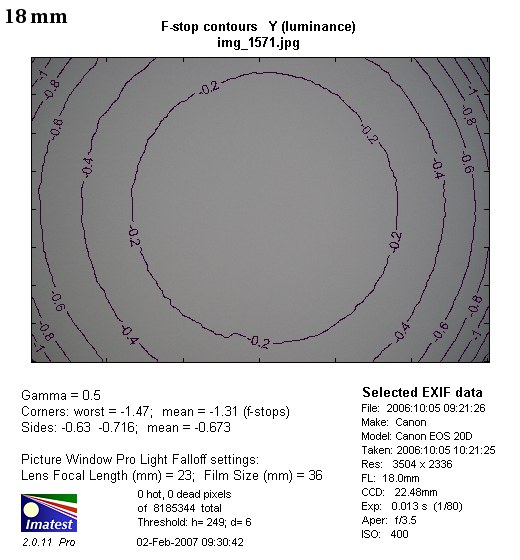

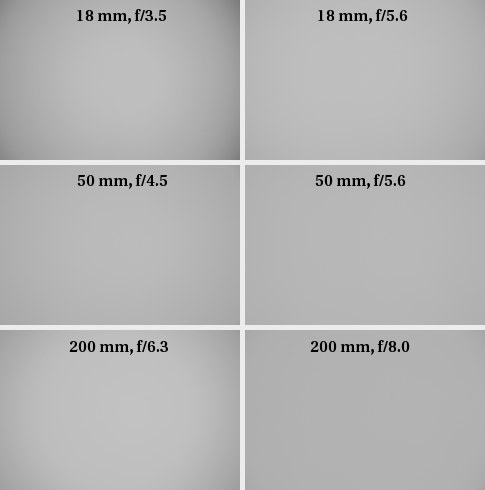

Small dimensions of the lens and the wide range of focal lengths made themselves felt in the case of vignetting. The worst situation we see at 18 mm where, at the maximum relative aperture (f/3.5), the light fall-off in the frame corners amounts to as much as 36% (-1.3 EV). On stopping down the lens to f/4.0 this aberration level decreases to 27% and using f/5.6 makes the situation improve even further (12%) but only by f/8 we won’t notice vignetting at all (10%).

Tamron AF 18-200 mm f/3.5-6.3 XR Di II LD Aspherical (IF) - Vignetting


Fortunately the situation looks much better in the middle of the range. At 50 mm and by f/4.5 the brightness loss in the frame corners reaches an insignificant level of 12% (-0.37 EV) and on stopping down to f/5.6 the aberration is practically non-existent (5%).

Similar performance we see at 100 mm. Even at the maximum relative aperture the vignetting remains slight (10% or 0.3 EV) and by using f/8 it is marginalized (4%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

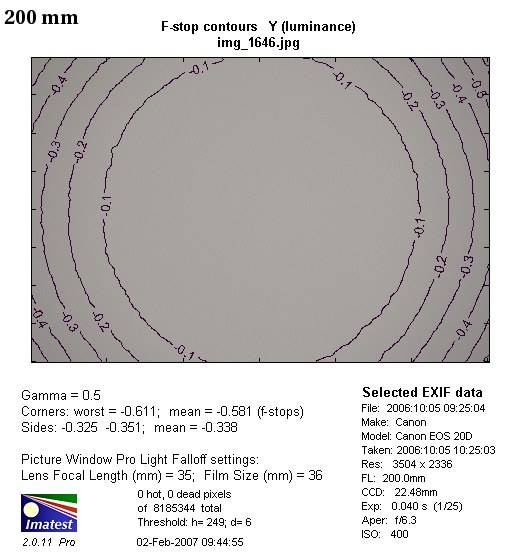

According to our expectations the light fall-off in the corners is the most pronounced at the maximum focal length but, fortunately, this effect is insignificant. By f/6.3 the vignetting value, measured by us, amounted to 18% (-0.56 EV) and it decreased to 6% by f/8.0.

Although we don’t like the high vignetting value at 18 mm, overall the Tamron fares quite well here. It simply knocks out the Nikkor 18-135 mm which at both ends had the vignetting at the level of 40-50% and in the middle of the range – definitely over 20%.

Tamron AF 18-200 mm f/3.5-6.3 XR Di II LD Aspherical (IF) - Vignetting

Tamron AF 18-200 mm f/3.5-6.3 XR Di II LD Aspherical (IF) - Vignetting

Tamron AF 18-200 mm f/3.5-6.3 XR Di II LD Aspherical (IF) - Vignetting
