LensTip.com

Lens review

Samsung NX 20-50 mm f/3.5-5.6 ED

26 January 2011
Arkadiusz Olech

8. Vignetting

As it was done in the test of the Samsung NX 30 mm f/2.0 here also we must emphasize the fact that our measurements were based on RAW files. The Samsung NX10 camera, used in our test, shows substantial differences between RAW and JPEG files – the latter are cropped and show a bit smaller brightness loss in the frame corners.

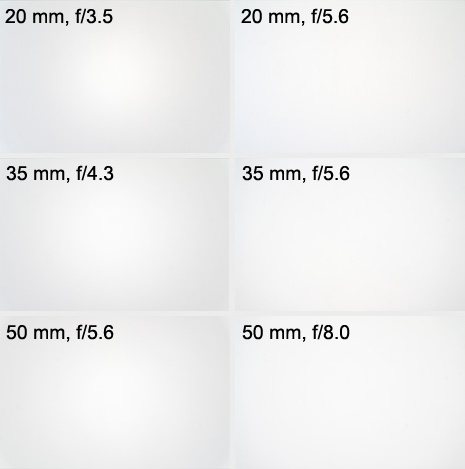

The crops below are our test photos thumbnails for three focal lengths and the aperture value near the maximum relative aperture.

Samsung NX 20-50 mm f/3.5-5.6 ED - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

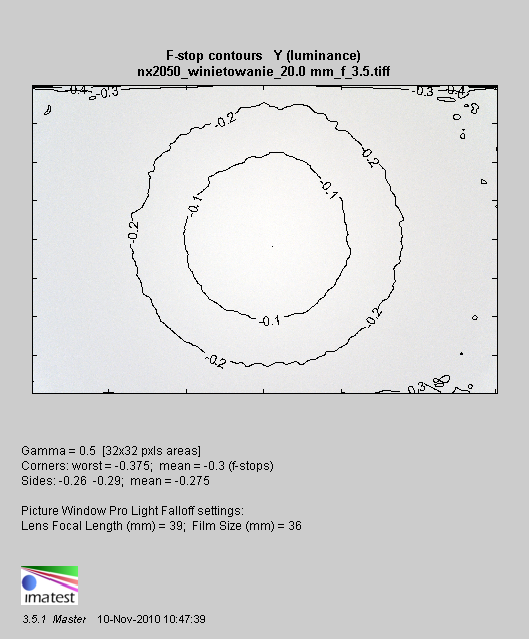

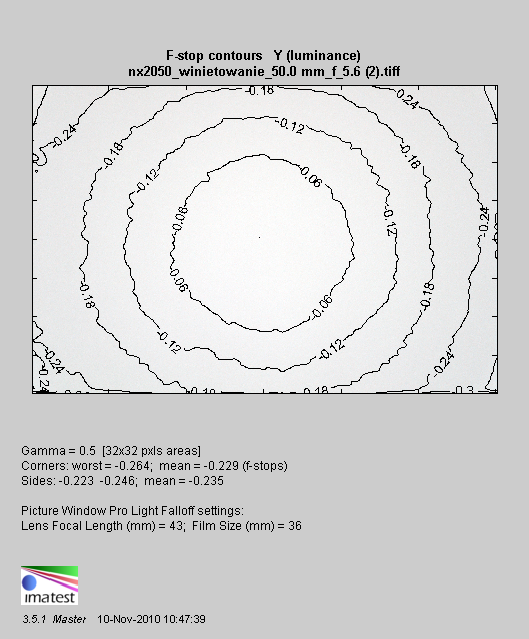

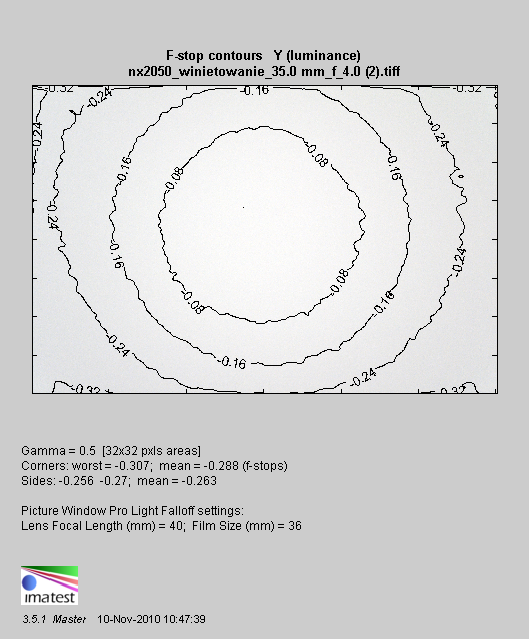

As you can notice the vignetting won’t be a problem here. It is practically independent of the aperture value, ranging from –0.3 EV (9.5%) at 20 mm focal length to −0.229 EV (7.6%) at 50 mm focal length.


Samsung NX 20-50 mm f/3.5-5.6 ED - Vignetting

Samsung NX 20-50 mm f/3.5-5.6 ED - Vignetting

Samsung NX 20-50 mm f/3.5-5.6 ED - Vignetting
