LensTip.com

Lens review

Nikon Nikkor AF-S DX Micro 85 mm f/3.5G ED VR

9 February 2011
Arkadiusz Olech

8. Vignetting

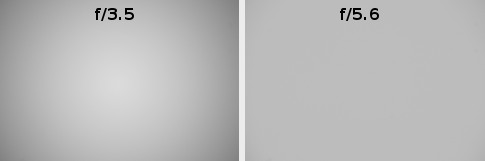

The thumbnails, showed below, are the proof of significant vignetting. Fortunately on stopping down we see it decreasing very quickly.

Nikon Nikkor AF-S DX Micro 85 mm f/3.5G ED VR - Vignetting

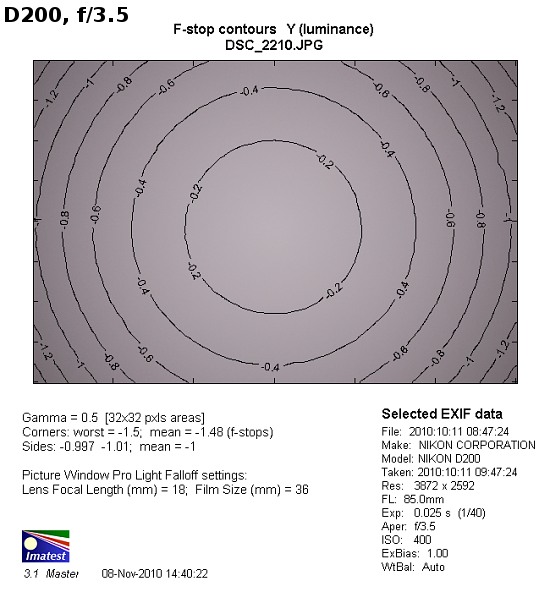

At the maximum relative aperture the brightness loss in the frame corners amounts to as much as 40% (-1.48 EV). This value is really huge for a DX format sensor. By f/4.0 the vignetting is already much lower, only 29%, and by f/5.6 it becomes imperceptible (7%).
