Lens review

Sigma 105 mm f/2.8 EX DG OS HSM Macro

20 September 2011
Arkadiusz Olech

8. Vignetting

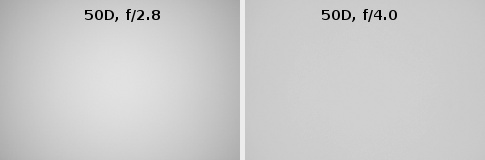

One look at the thumbnails below, showing uniformly light planes, taken with the Canon 50D, and you know that on such a small sensor as the APS-C/DX there are no vignetting problems whatsoever.

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Vignetting


Our measurements confirm it. At the maximum relative aperture the brightness loss in the frame corners amounts to 24% (-0.80 EV) which is not bothersome. On stopping down to f/4.0 we see this aberration disappear almost completely as the result is on the level of only 5% (-0.15 EV). The chart below shows the comparison between the Sigma and its rivals. It is clear the level of all three of them, presented in this category, is quite evened out.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Sigma
105 OS
Nikkor
105 VR
Canon
100 IS
f/2.8
24%
25%
20%
f/4.0
5%
5%
5%

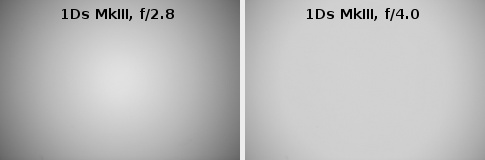

Let’s tackle the full frame performance now. One glance at thumbnails below and it becomes obvious the problems start getting more serious.

Sigma 105 mm f/2.8 EX DG OS HSM Macro - Vignetting

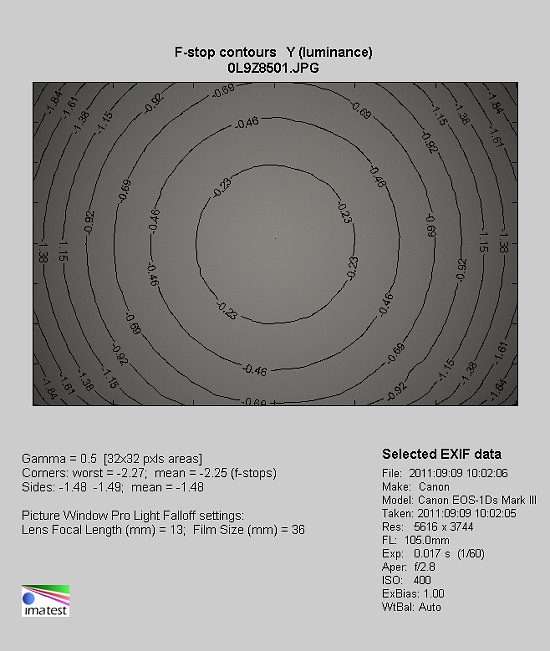

At the maximum relative aperture the vignetting reaches as high as 54% (-2.25 EV) and it is noticeably bigger than that of the Sigma’s immediate rivals. On stopping down to f/4.0 you see this aberration limited considerably but it remains visible and its level is 26% (-0.87 EV). Only by implementing f/5.6 you can make the problem disappear almost completely (7%).


Sigma
105 OS
Nikkor
105 VR
Canon
100 IS
f/2.8
54%
42%
43%
f/4.0
26%
26%
20%
f/5.6
7%
12%
8%


Sigma 105 mm f/2.8 EX DG OS HSM Macro - Vignetting
