4. Image resolution

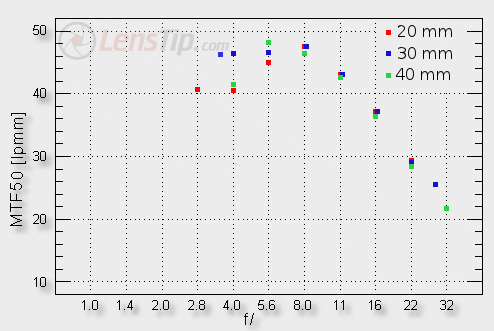

The resolution test of the Pentax HD DA 20–40 mm f/2.8–4.0 ED Limited DC WR was based on RAW files from the Pentax K-5 reflex camera. In that case the best “primes” can get results as high as 52-53 lpmm and the decency level is set near 34-35 lpmm. Let’s check how the tested lens compares here. The graph below presents its performance in the frame centre at 20,30 and 40 mm focal lengths.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Image resolution


It would be difficult to have any reservations concerning the MTF values, shown by the Pentax 20-40 mm. What’s important, all focal lengths’ MTF 50 values at the maximum relative aperture are on a level of 40 lpmm or higher, which guarantees you images of good quality. What’s interesting, at 20 and 30 mm the stopping down of aperture helps only a little with the limiting optical aberrations so the MTFs don’t get noticeably higher. As a result we weren’t bowled over by the maximum results of the lens. The maximum MTF values, reaching 47-48 lpmm, are a performance you can expect from a 18-55 or a 18-135 ‘kit’ lens. From a ‘limited’ device with a narrow focal range you have every right to demand more.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The more or less good impression you might get after the assessment of the frame centre disappears immediately when you glance at the values at the edge of the frame.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Image resolution


The image quality in the area near the maximum relative aperture is weak. The lens has to be stopped down to f/5.6 in order to provide fully useful photos. It means that at the shortest focal lengths you have to stop down by as much as 2 EV. What’s more, the lens’s maximum results are once again hardly impressive. In a case of such an expensive device a level of 40 lpmm, which is reached near f/8.0, is simply not enough.

If you want to know what resolution level we expect from a lens bought at that price point you might consult our review of the Sigma 18–35 mm f/1.8 lens, which test was performed on the Canon 50D; its sensor provides practically the same MTFs like those you get using the Pentax K-5 so the values are directly comparable. Seeing those results it becomes clear that the more expensive Pentax 20-40 mm fares rather badly.

At the end we present crops taken from our resolution testing chart photos, which were saved as JPEG files (the lowest sharpening level) along with RAW files, used for the analysis above.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Image resolution
