LensTip.com

Lens review

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR

8 February 2014
Arkadiusz Olech

6. Distortion

With such a small range of focal lengths and the maximum angle of view amounting to 70 degrees we didn’t expect huge distortion problems and, by and large, we didn’t notice any major issues here; however, you can’t say that aberration is corrected in a perfect way. At 20 mm focal length you have to take into account barrel distortion of −2.86%, which decreases to −1.08% in the middle of the focal range and then to −0.47% at 40 mm.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

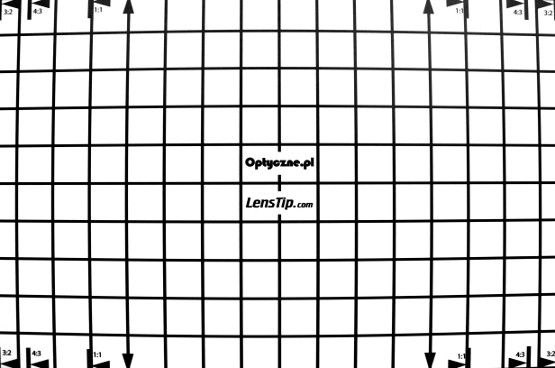

20 mm
Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Distortion

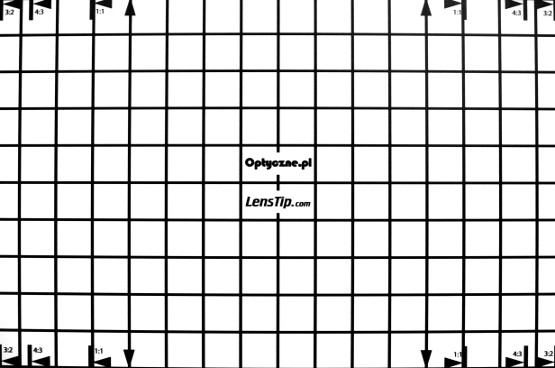

30 mm
Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Distortion

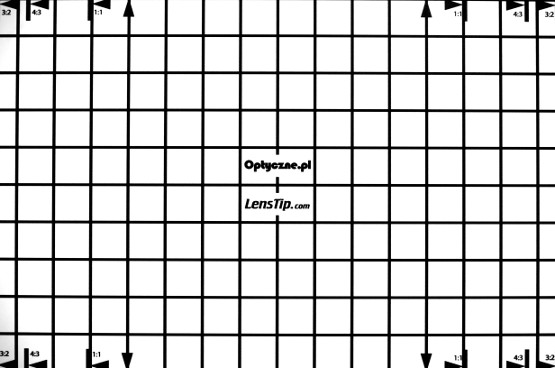

40 mm
Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Distortion
