Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR

8 February 2014
Arkadiusz Olech

8. Vignetting

In the photos below you can see the vignetting performance of the Pentax 20-40 mm attached to the K-5. there are no major problems there and our measurements confirm it.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Vignetting


At 20 mm and by f/2.8 the brightness loss in the frame corners amounts to 30% (-1.02 EV). On stopping down to f/4.0 it decreases to 20% (-0.63 EV) and it becomes practically imperceptible (10% and –0.30 EV) by f/5.6. In the middle of the focal range the situation is even better. At the maximum relative aperture the vignetting is 24% (-0.81 EV) and it decreases to 22% (-0.74 EV) by f/4.0. Employing f/5.6 allows you to diminish that aberration further to 16% (-0.50 EV). The problem becomes negligible by f/8.0, where the vignetting is just 10% (-0.32 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

At the maximum focal length and by f/4.0 the light fall-off in the frame corners gets to 28% (-0.96 EV). It is an interesting fact that stopping down helps very little with the reduction of vignetting at that focal length: by f/5.6 it still amounts to 26% (−0.87 EV), by f/8.0 it is 22% (−0.72 EV) and by f/11 - 18% (−0.59 EV).

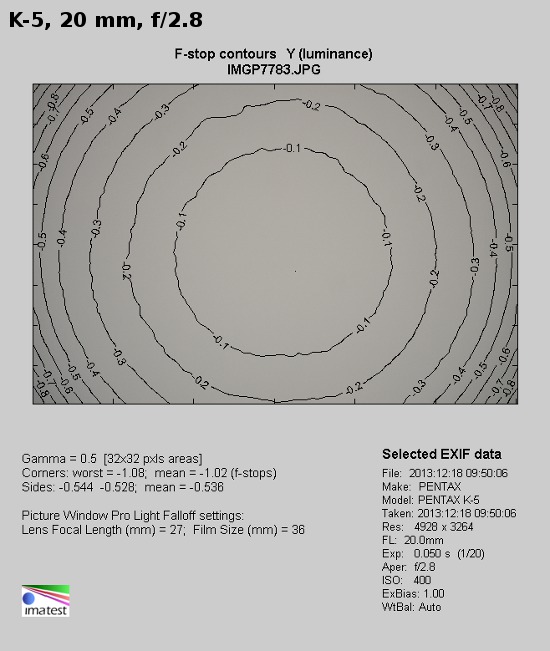

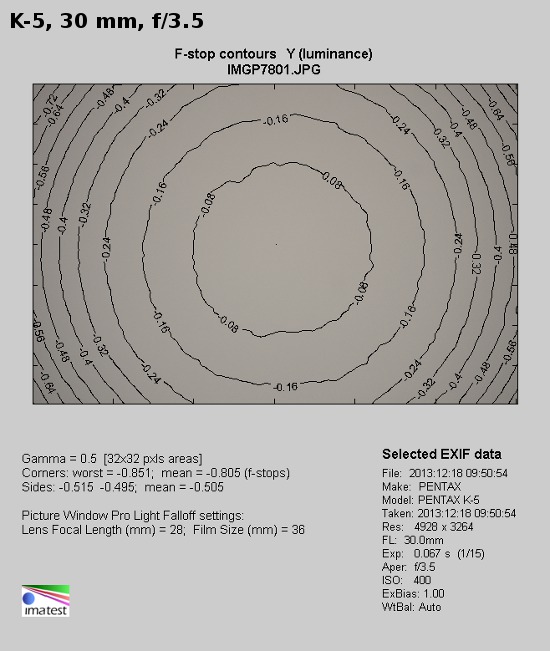

The measurements above concern of course just one precise area within the frame and they don’t tell us everything about vignetting; after all its function graph is important as well. That’s why in our tests we always present such graphs as the one, shown below, with isophotes so contour lines joining points of equal surface brightness; they tell you how fast the brightness loss is as you move away from the frame centre.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Vignetting

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Vignetting

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Vignetting

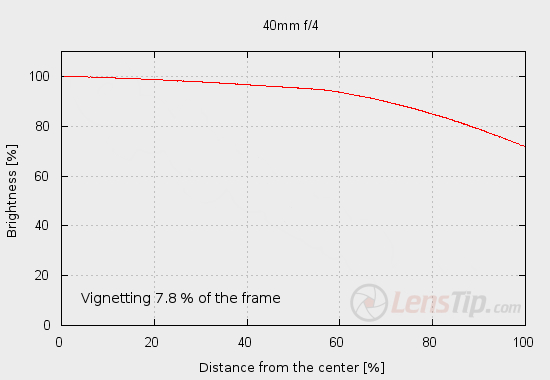

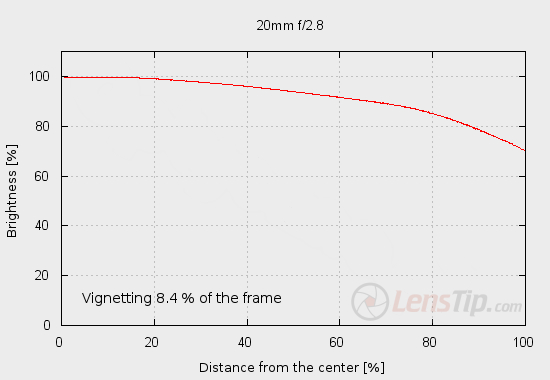

In order to make these graphs more reliable and competent we decided to show you another presentation. This time these are the averaged out values of brightness loss in concentric circles as you move away from the frame centre. The percentage numbers, presented in every picture, state the size of the real surface area, limited from above and from the right with a value of 100% and from below by the presented curve. That’s how you know how much light, overall, you lose due to the vignetting. You shouldn’t mix up those percentage values with the ones, given at the beginning of the chapter because they are not directly connected with each other.
