LensTip.com

Lens review

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR

8 February 2014
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

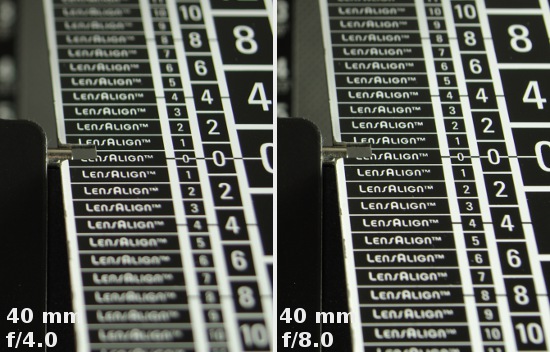

As you can notice in crops, shown below, the tested lens doesn’t have practically any problems with the longitudinal chromatic aberration. We didn’t expect them in such a construction and the Pentax 20-40 mm didn’t disappoint us here.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

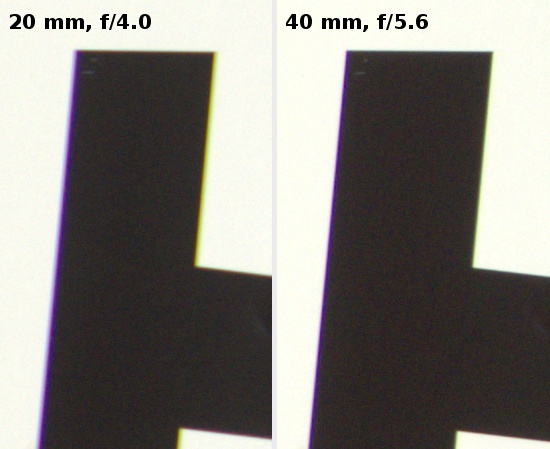

The lateral chromatic aberration correction is quite another story – especially the shortest focal length doesn’t look well.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Chromatic and spherical aberration

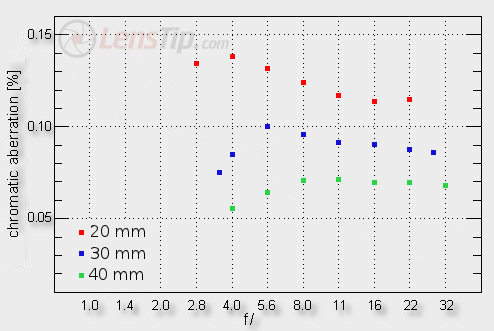

Near the maximum relative aperture and at 20 mm focal length the aberration is close to 0.14% - already a borderline between high and medium level. With the increase of the focal length the aberration decreases: at 30 mm its level can be described as medium and at 40 mm it is already low.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Chromatic and spherical aberration

Spherical aberration

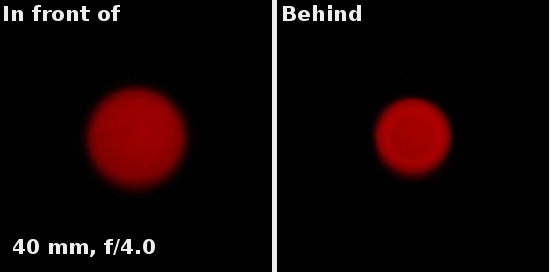

We don’t have any serious reservations concerning the spherical aberration correction. The lens doesn’t have any ‘focus shift’ effect and the differences between defocused images of light points you get in front of and behind the focus aren’t pronounced.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Chromatic and spherical aberration
