7. Coma, astigmatism and bokeh

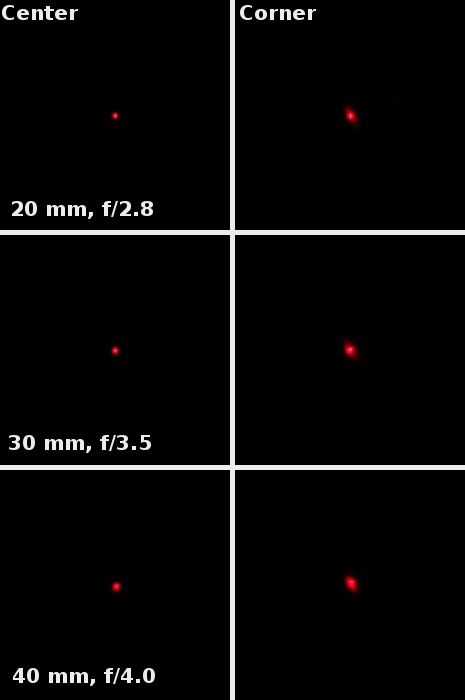

It would be difficult not to have any reservations here – the coma is visible at every focal length. Perhaps its level is not especially high or bothersome but, with such parameters and at such price point, a better performance should be expected.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Coma, astigmatism and bokeh


In the case of astigmatism the situation looks a bit better. The average difference between horizontal and vertical MTF50 function values amounted to 6% which is low.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

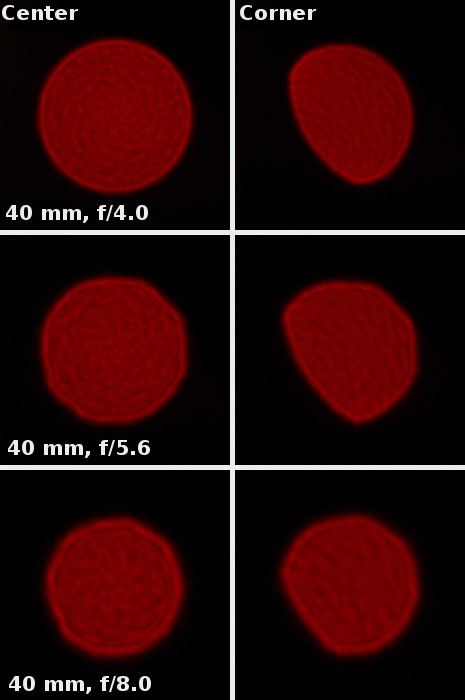

The appearance of defocused light points is quite interesting. The light doesn’t spread evenly there, with the inner part of the circle featuring a distinct tufty structure. The intensity of the outer rim increases with the stopping down. Vignetting seems to be another serious problem – even after stopping down to f/8.0 the circle in the corner of the frame remains truncated.

Pentax HD DA 20-40 mm f/2.8-4.0 ED Limited DC WR - Coma, astigmatism and bokeh
