Lens review

Canon EF 16-35 mm f/4L IS USM

22 July 2014
Arkadiusz Olech

6. Distortion

On a smaller sensor of the Canon 50D distortion won’t be a problem. You have some chances to notice it only at the shortest focal length where you must take into account barrel deformations amounting to –1.61%. At 24 mm the distortion becomes practically zero as its value, measured by us, was +0.11%. At 35 mm the pincushion deformations increase to +0.48% but even there the influence of this aberration on images would be difficult to perceive.

On full frame at 16 mm the problem becomes noticeably as the distortion reaches –4.00%. It is already a huge value and a good quality lens should have performed a lot better. On the other hand, with the Nikkor’s AF-S 16-35 mm f/4.9 VR distortion level of –6.33% the result of the Canon still looks great. At 24 mm focal length the distortion disappears almost completely – the official result being +0.04%. At the maximum focal length the level of that aberration remains slight, reaching just +1.11%.

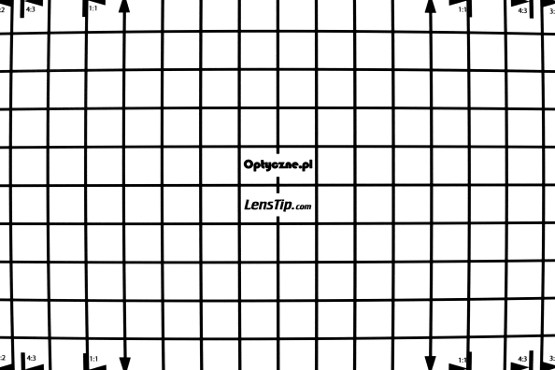

Canon 50D, 16 mm
Canon EF 16-35 mm f/4L IS USM - Distortion

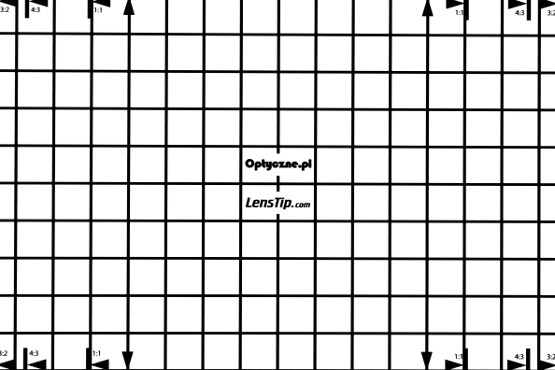

Canon 50D, 24 mm
Canon EF 16-35 mm f/4L IS USM - Distortion

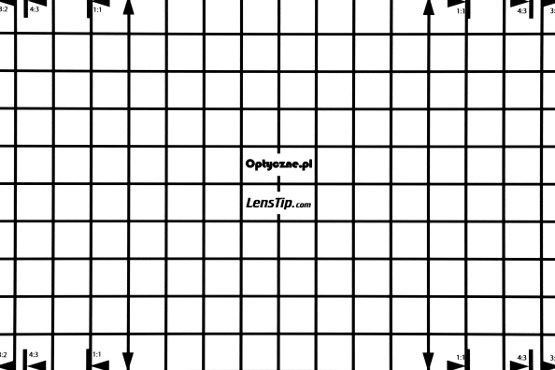

Canon 50D, 35 mm
Canon EF 16-35 mm f/4L IS USM - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

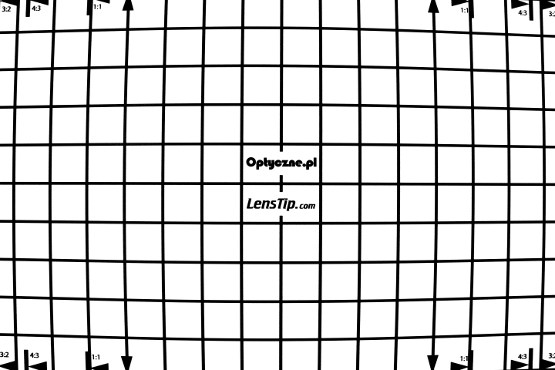

Canon 5D MkIII, 16 mm
Canon EF 16-35 mm f/4L IS USM - Distortion

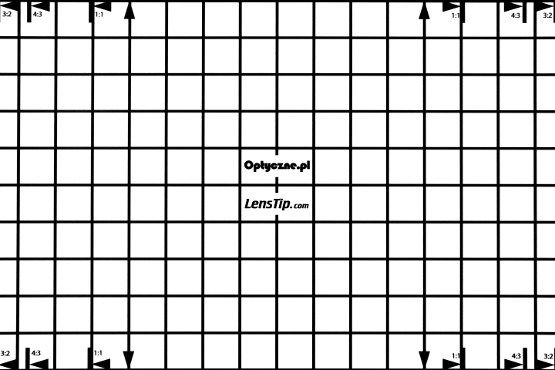

Canon 5D MkIII, 24 mm
Canon EF 16-35 mm f/4L IS USM - Distortion

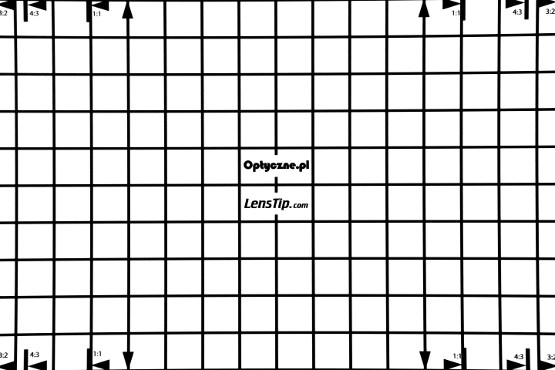

Canon 5D MkIII, 35 mm
Canon EF 16-35 mm f/4L IS USM - Distortion
