LensTip.com

Lens review

Panasonic Lumix G 25 mm f/1.7 ASPH.

11 March 2016
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The Panasonic 1.7/25 doesn’t have any serious problems connected with the longitudinal chromatic aberration. The colouring of out-of-focus images is noticeable but its level remains low. What’s interesting, a change of aperture from f/1.7 to f/2.2 causes few differences when it comes to that aberration.

Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

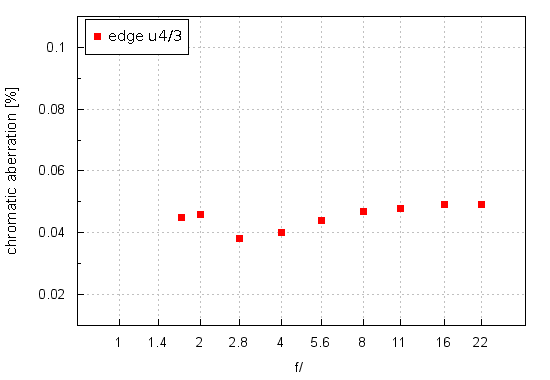

Now let’s check how the lens correct the lateral chromatic aberration – the appropriate graph his shown below.

Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration


Here you can’t have the slightest reservations. The aberration depends weakly on the aperture value, with a range from 0.04% to 0.05% including the majority of results. That level we consider to be low. It’s worth noticing that in this category the tested Panasonic fares a bit better than the Olympus M.Zuiko Digital 25 mm f/1.8.

Olympus E-PL1, f/2.8 Olympus E-PL1, f/16.0
Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration


Spherical aberration

It would be difficult to notice any ‘focus shift’ effect in the first photo of this chapter. The circles of light we got in front of and behind the focus do feature some differences but they are not especially pronounced. As a result we think the tested lens doesn’t have any serious problems with the spherical aberration.

Olympus E-M10, f/1.7, in front of Olympus E-M10, f/1.7, behind
Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration Panasonic Lumix G 25 mm f/1.7 ASPH. - Chromatic and spherical aberration
