Lens review

Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO

30 June 2016
Arkadiusz Olech

8. Vignetting

In order to assess the vignetting performance of the tested lens let’s check the thumbnails below.

Olympus E-PL1, 300 mm, f/4.0 Olympus E-PL1, 300 mm, f/5.6
Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting

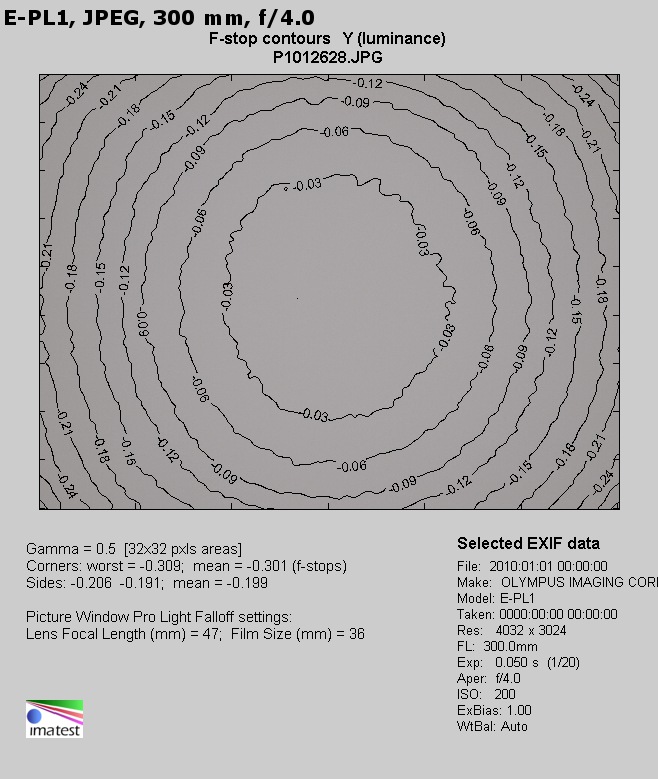

I must be honest: I haven’t seen such low results for quite a long time. Already at the maximum relative aperture the vignetting level is very low, reaching just 10% (−0.30 EV). On stopping down the aperture by 1EV stop it disappears almost completely getting to precisely 1% (−0.03 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

When you progress to RAW files, with a bit larger angle of view, the vignetting increases by 1-2% but still it shouldn’t bother you at all.

It’s difficult to imagine but after attaching the tele-converter the situation is even better!

Olympus E-PL1, 420 mm (TC), f/5.6 Olympus E-PL1, 420 mm (TC), f/8.0
Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting

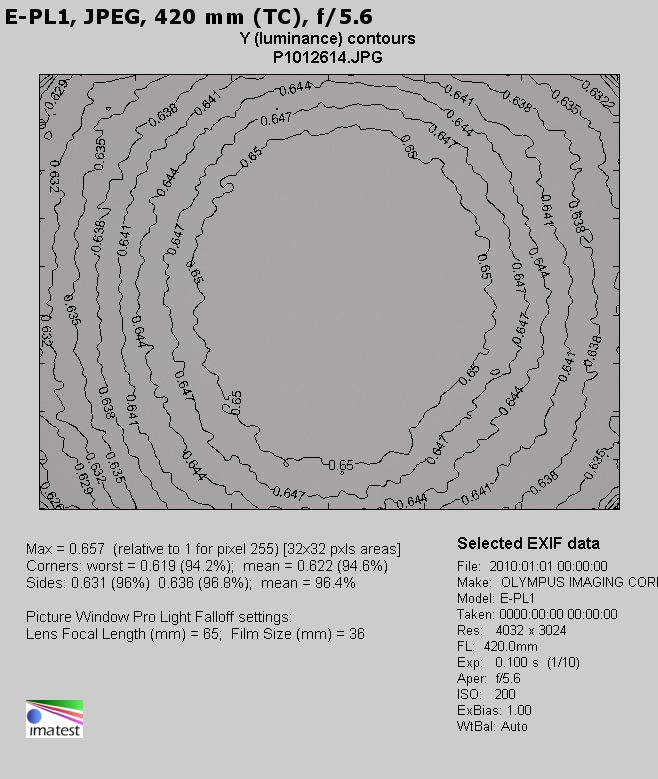

At the maximum relative aperture the vignetting amounts to just 5% (−0.16 EV), and on stopping down to f/8.0 it decreases below 1% (−0.015 EV). I really can’t remember the last time I saw such brilliant results in this category; mind you so far I’ve tested close to four hundred lenses!

Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting

Olympus M.Zuiko Digital 300 mm f/4.0 ED IS PRO - Vignetting
