Fujifilm Fujinon XF 23 mm f/2 R WR

2 November 2016
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

The longitudinal chromatic aberration of the Fujinon 2/23 is practically nonexistent. It makes the lens to stick out in a positive way when compared to its faster brother – that device experienced a lot of problems in this category.

Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

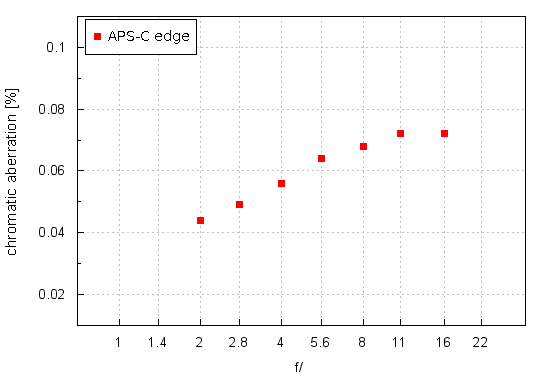

As the graph below shows clearly, the lateral chromatic aberration isn’t a thing you should worry about either.

Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration


The aberration increases a bit over 0.04% by f/2.0 and to 0.07% on more distinct stopping down. These values we consider to be very low or low and they shouldn’t be bothersome in real life photos. What’s interesting, it is a result slightly better than that of the faster 1.4/23 model - its aberration didn’t depend on aperture value and kept a level of 0.07-0.08% all the time.

Fujifilm X-E1, RAW, f/2.0 Fujifilm X-E1, RAW, f/11.0
Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration



Spherical aberration

It would be difficult to spot any „focus shift” effect in the first photo of this chapter. Additionally the appearance of light circles we got in front of and behind the focus was very much alike – not identical, mind you, so the spherical aberration is not corrected in a perfect way but still it would be difficult to have any serious reservations.

Fujifilm X-E1, f/2.0, in front of Fujifilm X-E1, f/2.0, behind
Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration Fujifilm Fujinon XF 23 mm f/2 R WR - Chromatic and spherical aberration
