LensTip.com

Lens review

Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro

14 December 2017
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

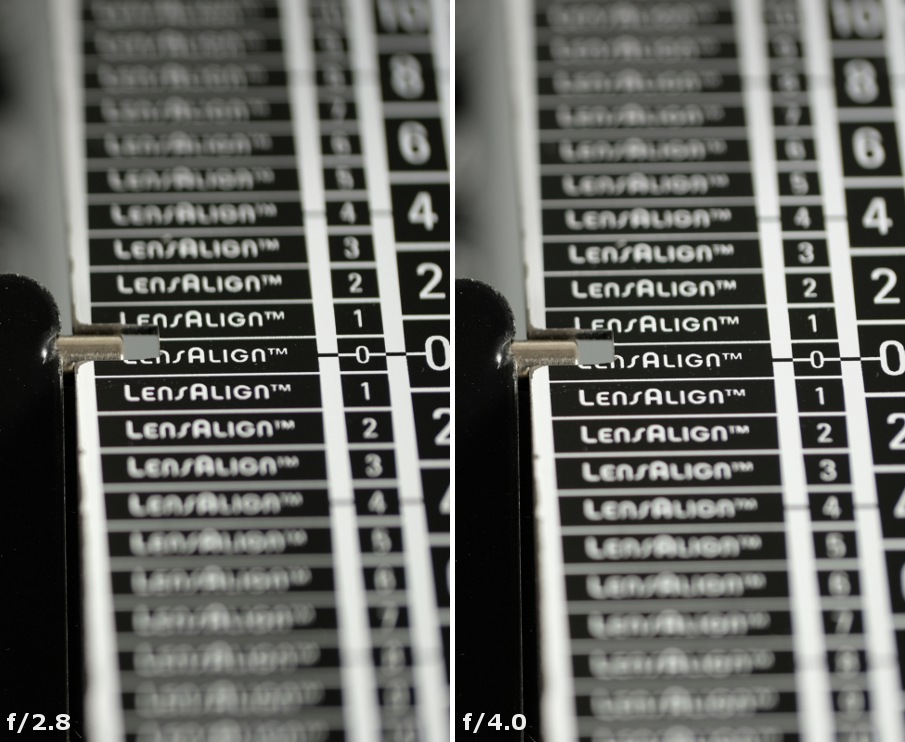

The tested lens correct the longitudinal chromatic aberration very well and, as shown in crops below, it remains invisible even at the maximum relative aperture.

Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration

Also the lateral chromatic aberration won’t be problematic here – the graph below shows the lens’s performance depending on aperture values.

Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Near the maximum relative aperture you see very low values of 0.03-0.04%. On stopping down the aperture the aberration increases but still it never comes closer to medium values. In this category the performance of the Fujinon should be assessed very positively.

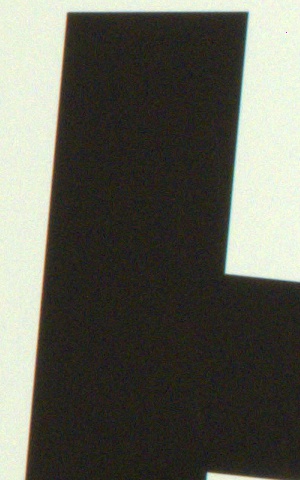

Fujifilm X-T2, RAW, f/2.8 Fujifilm X-T2, RAW, f/11.0
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration


Spherical aberration

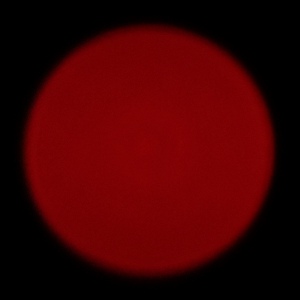

It would be difficult to notice any “focus shift” effect in first photos of this chapter. Additionally, the circles of light we got in front of and behind the focus look almost identical. Those features make us think that spherical aberration shouldn’t be a big problem for the tested lens.

Fujifilm X-T2, f/2.8, in front of Fujifilm X-T2, f/2.8, behind
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Chromatic and spherical aberration
