LensTip.com

Lens review

Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro

14 December 2017
Arkadiusz Olech

7. Coma, astigmatism and bokeh

The Fujinon XF 80 mm f/2.8 LM OIS WR Macro corrects the coma in practically ideal way. Even at the maximum relative aperture and in the very corner of the frame the diode images aren’t distorted at all.

X-T2, f/2.8, center X-T2, f/2.8, corner
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh
X-T2, f/4.0, center X-T2, f/4.0, corner
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh


The astigmatism, understood as an average difference between horizontal and vertical MTF50 function values, is negligible. In our test it amounted to 2.5%; it means that aberration level can be called very low.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

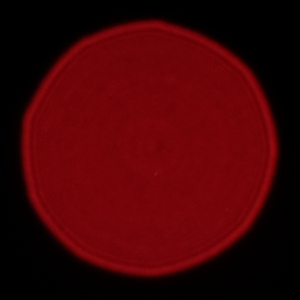

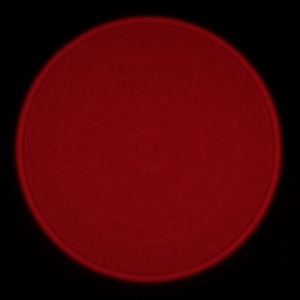

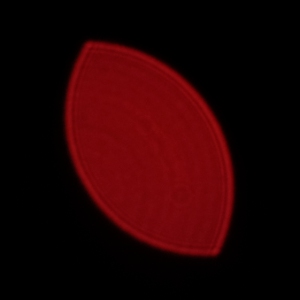

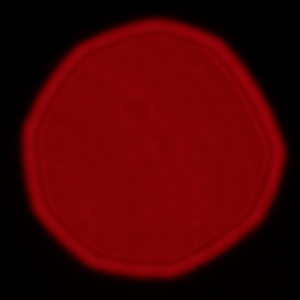

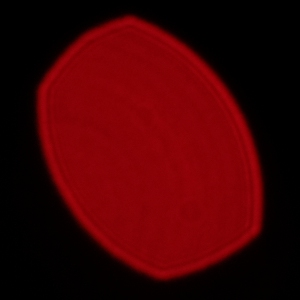

Defocused light circles look nice. The light spread is very even and a slight rim on the very edge is the only feature that sticks out. Still mechanical vignetting is a problem as, at the maximum relative aperture, it truncates the circle in the frame corner very distinctly.

X-T2, f/2.8, center X-T2, f/2.8, corner
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh
X-T2, f/4.0, center X-T2, f/4.0, corner
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh
X-T2, f/5.6, center X-T2, f/5.6, corner
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Coma, astigmatism and bokeh
