LensTip.com

Lens review

Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro

14 December 2017
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below; they present JPEG files we reached with the help of the Fujifilm X-T2 we registered in order to assess the vignetting of the tested lens.

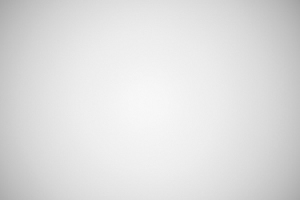

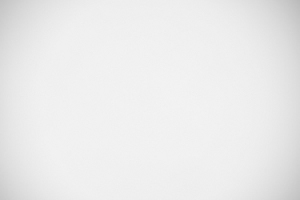

X-T2, JPEG, f/2.8 X-T2, JPEG, f/4.0
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting


At the maximum relative aperture the vignetting is perfectly visible, amounting to 31% (−1.09 EV). By f/4.0 it decreases to 20% (−0.63 EV), and by f/5.6 it becomes practically imperceptible, diminishing to 10% (−0.29 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Fujifilm system corrects the vignetting on JPEGs so only an analysis of RAW files can reveal the truth about the performance in this category. Appropriate thumbnails are shown below.

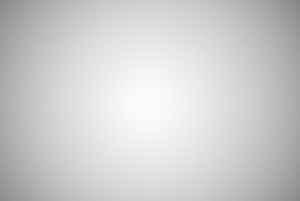

X-T2, RAW, f/2.8 X-T2, RAW, f/4.0
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting

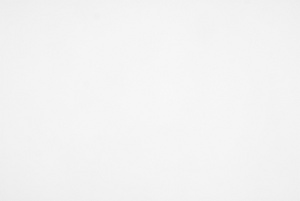

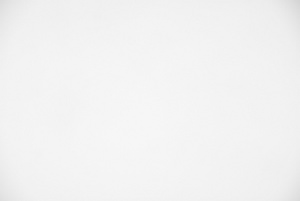

X-T2, RAW, f/5.6 X-T2, RAW, f/8.0
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting


In this case the vignetting is keenly felt. At the maximum relative aperture the tested lens loses as much as 45% (−1.74 EV) of light in the frame corners. The aberration decreases to 26% (−0.86 EV) by f/4.0 and to 11% (−0.33 EV) by f/5.6. By f/8.0 the problem disappears completely as the vignetting level at that point is just 4% (−0.11 EV).

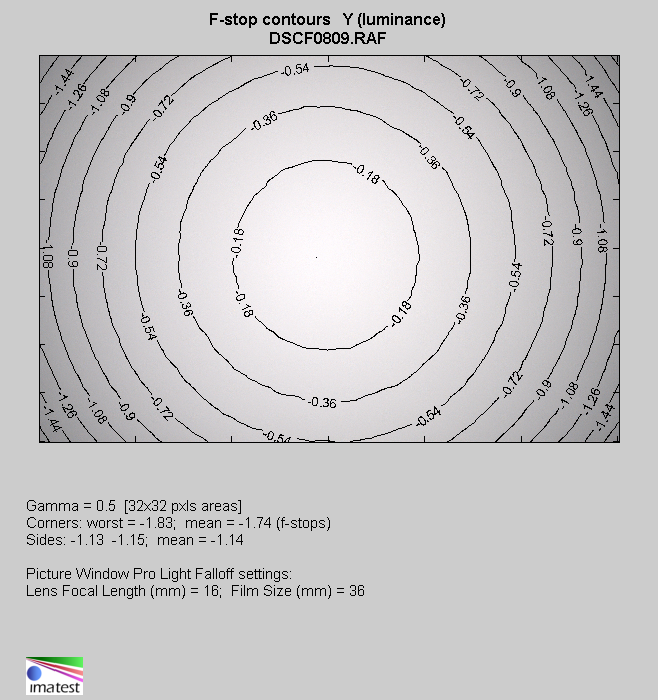

Fujifilm X-T2, RAW, f/2.8
Fujifilm Fujinon XF 80 mm f/2.8 LM OIS WR Macro - Vignetting
