5. Chromatic and spherical aberration

Chromatic aberration

To tell you the truth we are not especially fond of the longitudinal chromatic aberration correction of the tested Canon 1.4/85 IS. Such a top-end, expensive new lens should have performed better. The aberration is visible not only at the maximum relative aperture but also on stopping down to f/2.0. In that area both the Zeiss Milvus 1.4/85 and the Sigma A 1.4/85 fared better.

Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration

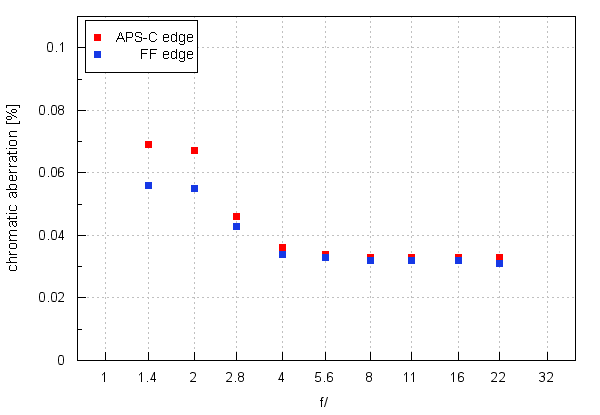

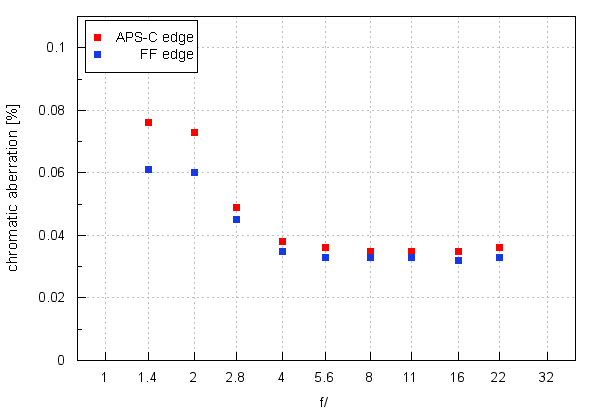

When it comes to lateral chromatic aberration the news are better – just look at graphs based on data from the Canon 5D Mark III and the Canon 5Ds.
Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration

Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration


The highest level of that aberration you can observe near the maximum relative aperture but even there the aberration never reaches medium values, remaining low. On more significant stopping down you see it reduced to a very low level.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Canon 5D III, RAW, f/1.4 Canon 5D III, RAW, f/5.6
Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter don’t feature any ‘focus shift’ effect. Still, as you can notice in the crops below, the circles we got in front of and behind the focus differ from each other more distinctly than in the case of e.g. the Sigma 1.4/85 or the Milvus 1.4/85. It means the spherical aberration is not corrected in a perfect way and adversely affects image quality near the maximum relative aperture.

Canon 5D III, f/1.4, in front of Canon 5D III, f/1.4, behind
Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration Canon EF 85 mm f/1.4L IS USM - Chromatic and spherical aberration
