Lens review

Samyang AF 35 mm f/1.4 FE

30 March 2018
Arkadiusz Olech

8. Vignetting

First let’s check the vignetting level for the smaller APS-C sensor – appropriate thumbnails are shown below.

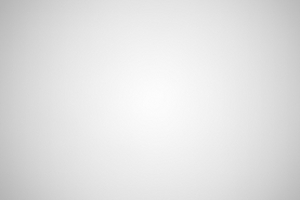

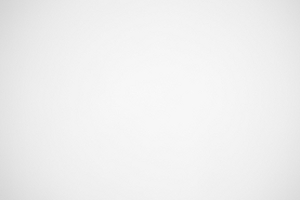

A7R II, APS-C, f/1.4 A7R II, APS-C, f/2.0
Samyang AF 35 mm f/1.4 FE - Vignetting Samyang AF 35 mm f/1.4 FE - Vignetting


Good results are guaranteed here by the significant physical dimensions of the lens. The vignetting is noticeable only at the maximum relative aperture, where it reaches 27% (−0.91 EV). By f/2.0 and f/2.8 it disappears almost completely, being just 12% (−0.39 EV) and 8% (−0.25 EV) respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger full frame sensor there are more problems as illustrated by photos below.

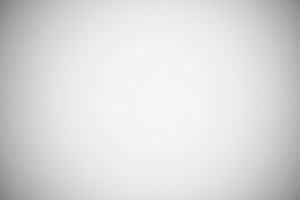

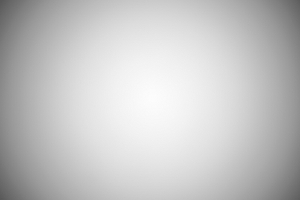

A7R II, FF, f/1.4 A7R II, FF, f/2.0
Samyang AF 35 mm f/1.4 FE - Vignetting Samyang AF 35 mm f/1.4 FE - Vignetting

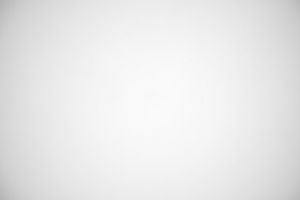

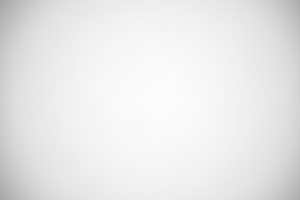

A7R II, FF, f/2.8 A7R II, FF, f/4.0
Samyang AF 35 mm f/1.4 FE - Vignetting Samyang AF 35 mm f/1.4 FE - Vignetting


The loss of light at the maximum relative aperture is really huge, reaching 64% (−2.91 EV). The light fall-off is also easy to notice by f/2.0 and f/2.8 apertures, where it is, respectively, 47% (−1.81 EV) and 33% (−1.17 EV). Only by f/4.0 that aberration level can be called moderate, with a result of 27% (−0.91 EV). After employing f/5.6 you see the vignetting decrease again but only slightly; in that place we got a value of 24% (−0.79 EV). Further stopping down of the aperture didn’t have any measureable effect on results of the tested lens in this category.

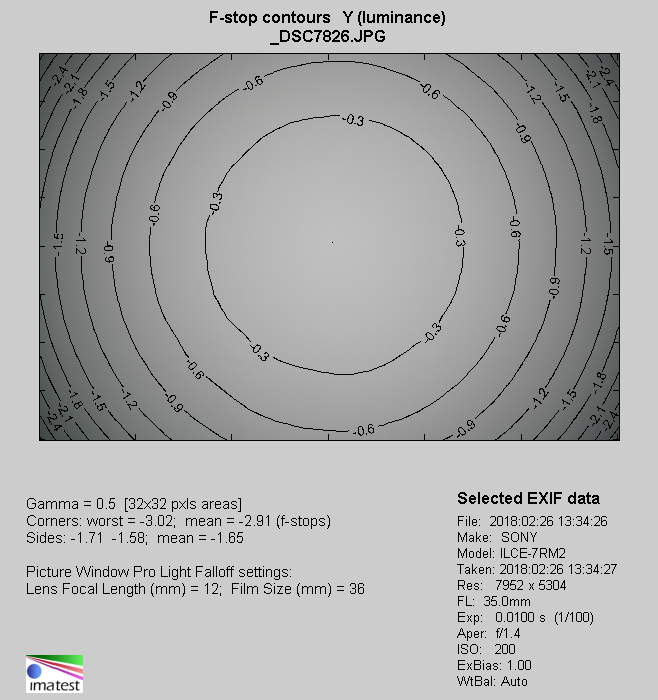

Sony A7R II, JPEG, f/1.4
Samyang AF 35 mm f/1.4 FE - Vignetting
