8. Vignetting

First let's check the Tamron's vignetting on the smaller APS-C sensor – appropriate thumbnails you can find below.

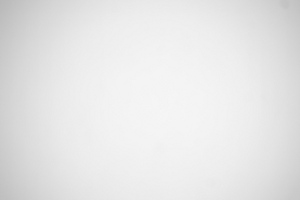

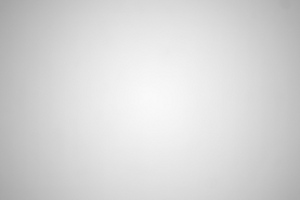

A7RII, APS-C, f/2.8 A7RII, APS-C, f/4.0
Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting


The aberration is completely visible at the maximum relative aperture, where it reaches 32% (−1.12 EV). It's a lot, after all we are speaking about the smaller APS-C sensor. Vignetting makes itself felt also by f/4.0, where it amounts to 21% (−0.70 EV), and it becomes practically imperceptible by f/5.6, where we got a result of 14% (−0.45 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let's check the situation on full frame by glancing at thumbnails below.

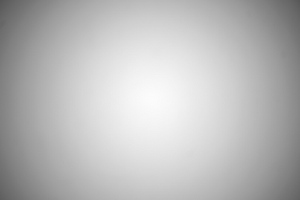

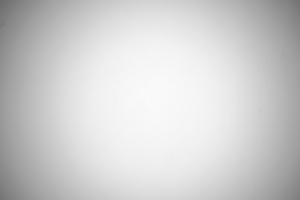

A7RII, FF, f/2.8 A7RII, FF, f/4.0
Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting

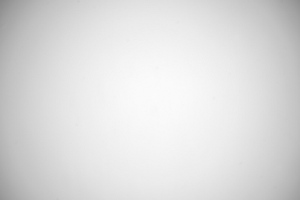

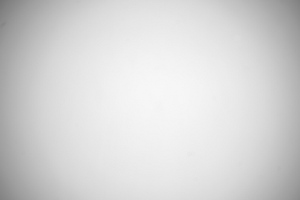

A7RII, FF, f/5.6 A7RII, FF, f/8.0
Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting


In this case the results are simply bad. By f/2.8 brightness loss in frame corners amounts to as much as 63% (−2.89 EV). What's more, stopping down helps a bit but not as much as we wish it would. By f/4.0 the aberration still reaches a very high level of 53% (−2.20 EV), by f/5.6 it decreases to 47% (−1.87 EV), and by f/8.0 it drops to 41% (−1.53 EV). Also by f/11.0 and f/16 you can notice a slight decrease, with the following results: 36% (−1.28 EV) and 35% (−1.25 EV).

Sony A7RII, JPEG, f/2.8
Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting
Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value of every image, expressed in percents, shows an area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please, don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Tamron 20 mm f/2.8 Di III OSD M 1:2 - Vignetting

f/2.8 f/4 f/5.6 f/8
