LensTip.com

Lens review

Samyang AF 45 mm f/1.8 FE

12 September 2020
Maciej Latałło

8. Vignetting

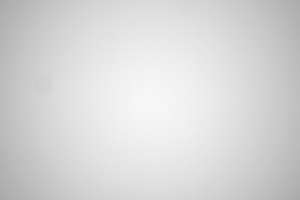

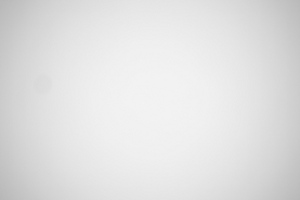

First let's check how the lens performs on the smaller APS-C sensor – appropriate thumbnails you can find below.

A7R II, APS-C, f/1.8 A7R II, APS-C, f/2.0
Samyang AF 45 mm f/1.8 FE - Vignetting Samyang AF 45 mm f/1.8 FE - Vignetting


Small dimensions of the lens mean you can notice vignetting already on the smaller sensor. At the maximum relative aperture that aberration reaches 31% (−1.07 EV) and it decreases to 24% (−0.79 EV) on stopping down the aperture to f/2.0. Problems in this category end practically completely by f/2.8 and f/4.0 where we got the following results: 11% (−0.33 EV) and 10% (−0.30 EV) respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

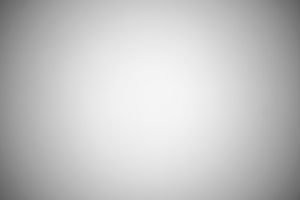

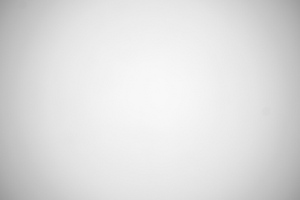

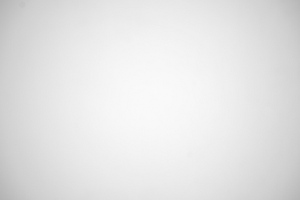

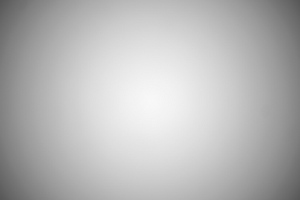

Now let's check the situation on full frame – appropriate thumbnails you can find below.

A7R II, FF, f/1.8 A7R II, FF, f/2.0
Samyang AF 45 mm f/1.8 FE - Vignetting Samyang AF 45 mm f/1.8 FE - Vignetting
A7R II, FF, f/2.8 A7R II, FF, f/4.0
Samyang AF 45 mm f/1.8 FE - Vignetting Samyang AF 45 mm f/1.8 FE - Vignetting


According to our expectations there are far more problems here. At the maximum relative aperture brightness loss in frame corners amounts to as much as 64% (−2.99 EV). You can also spot vignetting without any difficulties by f/2.0 and f/2.8 where we got the following results: 60% (−2.68 EV) and 36% (−1.30 EV). Moderate levels are achieved only from f/4.0 onwards, with light fall-off being 27% (−0.92 EV). By f/5.6 the vignetting decreases to 23% (−0.76 EV) and further stopping down doesn't have any measurable influence on this aberration.

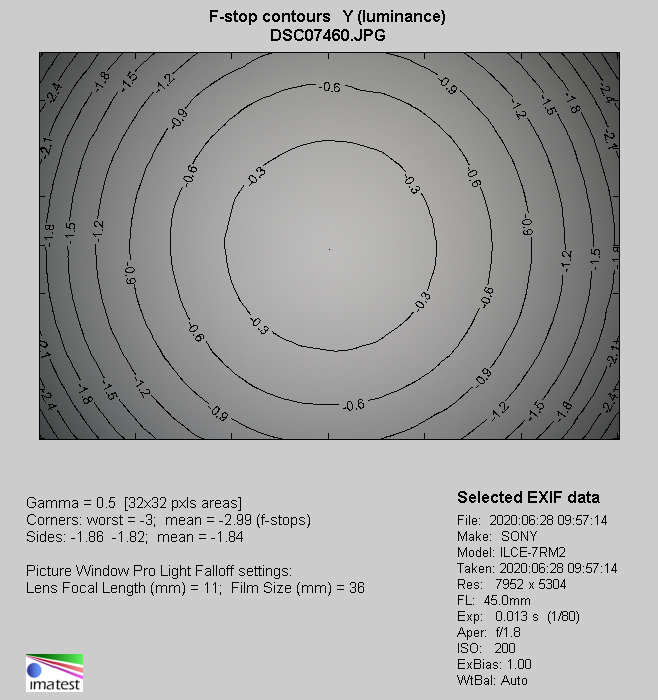

Sony A7R II, JPEG, f/1.8
Samyang AF 45 mm f/1.8 FE - Vignetting
