LensTip.com

Lens review

Samyang AF 45 mm f/1.8 FE

12 September 2020
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

One low dispersion glass element inside the tested Samyang is perhaps not enough. Longitudinal chromatic aberration remains quite visible and makes itself felt not only at the maximum relative aperture but also on stopping down the lens by 1 EV.

Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration

Lateral chromatic aberration can be described in more positive manner – its performance, depending on the used detector and aperture values, is presented below.

Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


As you can see, the graphs are quite flat, with values fluctuating near low and very low levels. It means you won't encounter almost any problems in this area.

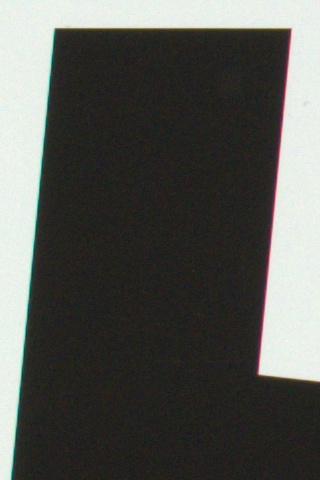

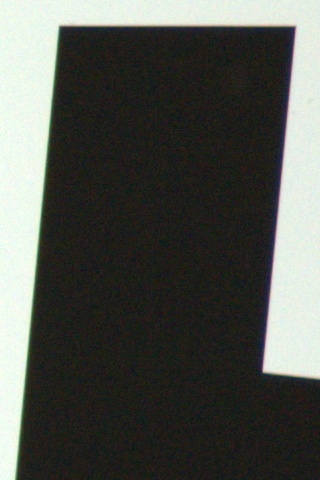

A7R II, RAW, f/1.8 A7R II, RAW, f/5.6
Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration


Spherical aberration

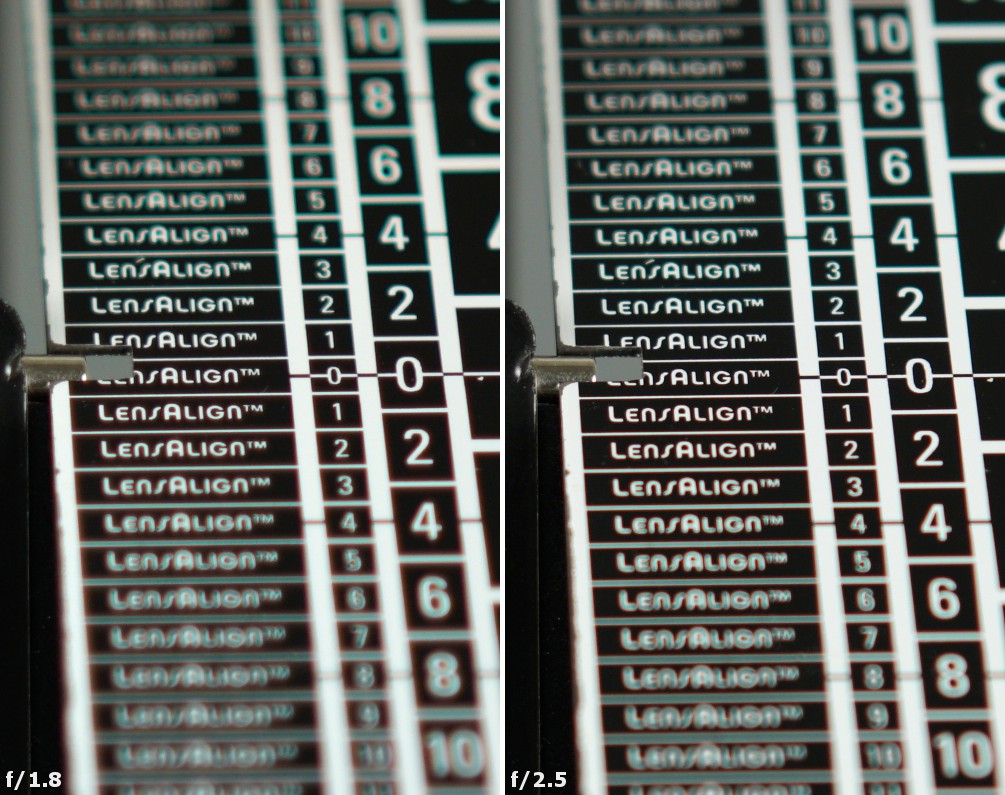

In first photos of this chapter you can notice a very slight trace of 'focus shift' effect – depth of field seems to move toward greater distances when you pass from f/1.8 to f/2.5. Still that effect is really subtle.

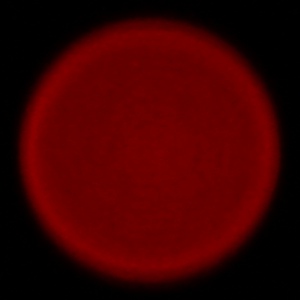

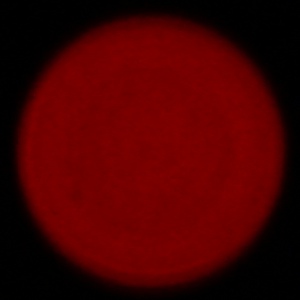

However, when you examine defocused circles of light you might find other traces of spherical aberration. The circle behind the focus features a quite even light spread but the one we got before the focus has a lighter rim.

Both effects, described here, indicate that spherical aberration of the Samyang 1.8/45 is not corrected in a perfect manner. .

A7R II, f/1.8, before A7R II, f/1.8, after
Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration Samyang AF 45 mm f/1.8 FE - Chromatic and spherical aberration
