5. Chromatic and spherical aberration

Chromatic aberration

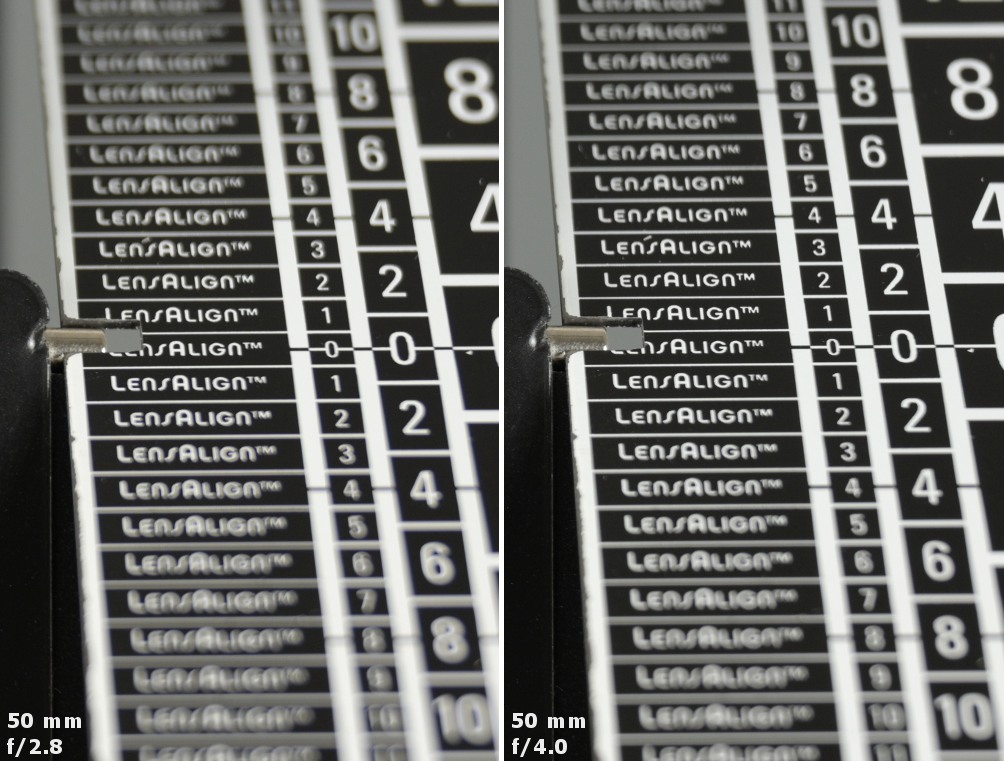

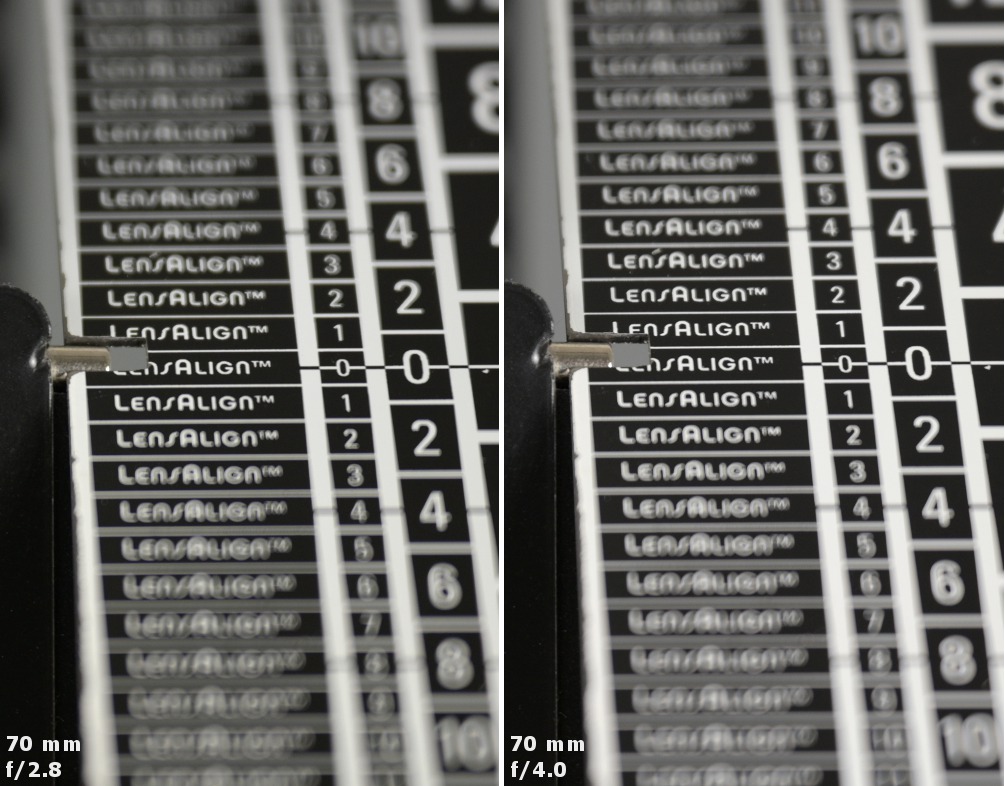

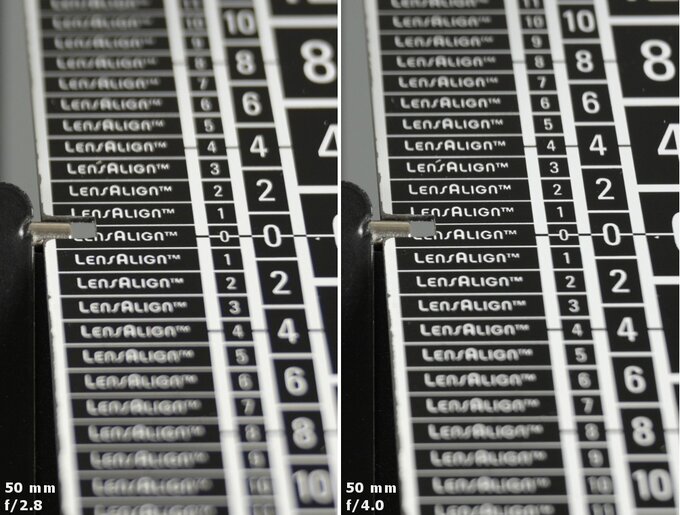

The Nikkor Zá24–70ámm f/2.8áS deals with longitudinal chromatic aberration well. Both in the middle of the focal range and at 70 mm colouring of out-of-focus areas is slight. We think it will be barely noticeable in real-life photos.

Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration

Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration


Two graphs below show the performance of lateral chromatic aberration depending on the focal length and aperture value; the first shows the situation on the edge of the APS-C/DX sensor and the second one deals with the edge of full frame.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration

Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration

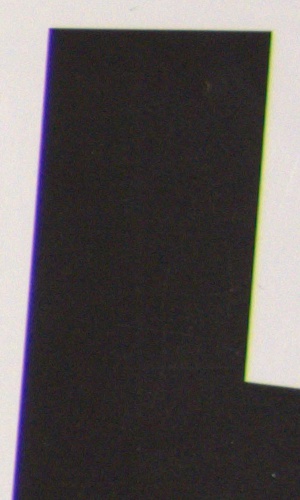

It is clear that the highest level of this aberration you see at the shortest focal length; still, even at that place it won't be a huge problem. The maximum values we got didn't exceed a level of 0.06%. At 45 and 70 mm aberration is very low and it won't disturb you at all.

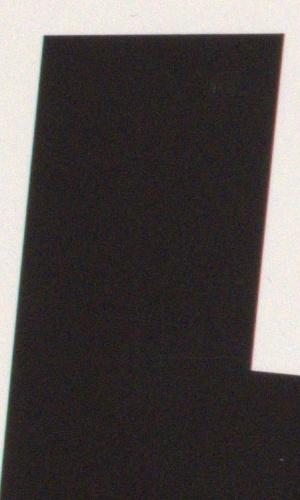

Z7, RAW, 24ámm, f/4.0 Z7, RAW, 70ámm, f/8.0
Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration


Spherical aberration

First images, presented in this chapter, and photos of defocused circles of light show that spherical aberration makes itself felt a bit in the centre of the focal range. You can notice very slight focus shift effect but, at the same time, circles you get before and behind the focus point feature distinct differences when it comes to intensity of the rim. That effect is much less visible at 70 mm focal length.

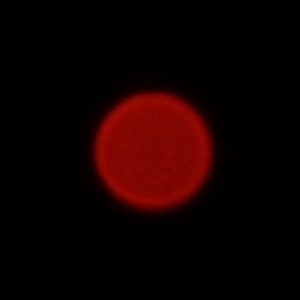

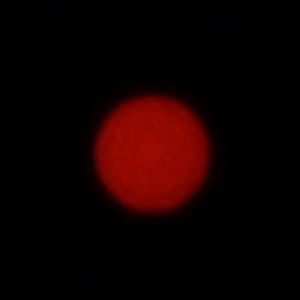

Nikon Z7, 45ámm, f/2.8, before Nikon Z7, 45ámm, f/2.8, after
Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration

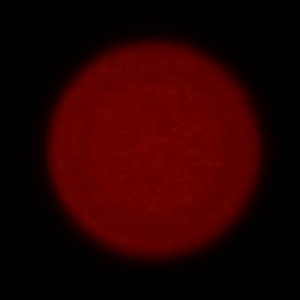

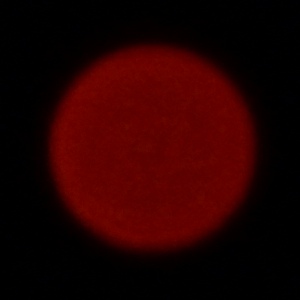

Nikon Z7, 70ámm, f/2.8, before Nikon Z7, 70ámm, f/2.8, after
Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration Nikon Nikkor Z 24-70 mm f/2.8 S - Chromatic and spherical aberration
