LensTip.com

Lens review

Voigtlander Apo Lanthar 35 mm f/2 Aspherical

11 June 2021
Maciej Latałło

8. Vignetting

First let's check how vignetting looks on the smaller APS-C sensor– appropriate thumbnails you can find below.

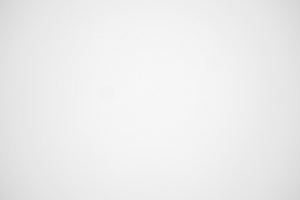

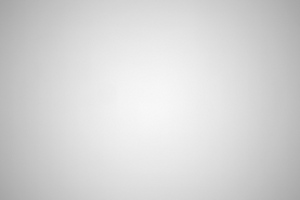

A7R II, APS-C, f/2.0 A7R II, APS-C, f/2.8
Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting


In this case you get some chances to notice vignetting only at the maximum relative aperture, where its value amounts to 32% (−1.13 EV). By f/2.8 it decreases to 13% (−0.41 EV), and by f/4.0 it is 12% (−0.37 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to the bigger, full frame sensor there are far more problems and they are clearly visible in the following photos.

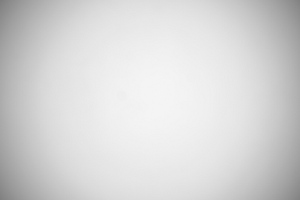

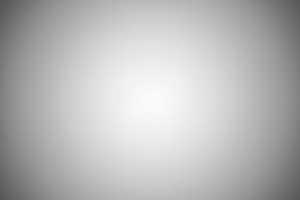

A7R II, FF, f/2.0 A7R II, FF, f/2.8
Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting

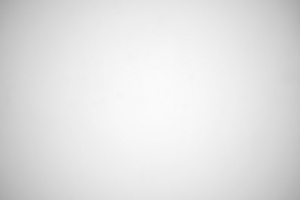

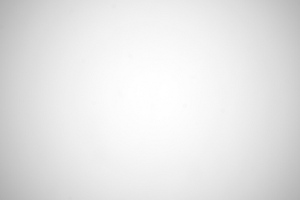

A7R II, FF, f/4.0 A7R II, FF, f/5.6
Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting


At the maximum relative aperture vignetting reaches a huge level of 65% (−3.05 EV) and it is the first serious stlip-up of the tested lens. As a kind of consolation you might add that the Sigma C 2/35 fared even weaker but the Battis had a better result of 55%. What's curious, a bit faster Sony FE 1.8/35, when stopped down to f/2.0, showed a level of 66% so, in fact, the same as the Voigtlander at its maximum relative aperture. The Samyang 1.8/35 doesn't fare better as its vignetting by f/2.0 amounts to 63%. As you can see, in this category the performance of all lenses is similarly weak.

Still it is a bit consoling that, at least at the very beginning, on stopping down the aperture the Voigtlander manages to improve its performance quite quickly. By f/2.8 vignetting amounts to 47% (−1.83 EV), by f/4.0 it decreases to 32% (−1.12 EV), and by f/5.6 to 30% (−1.02 EV). Further stopping down doesn't have any measureable effect on the aberration, described here.

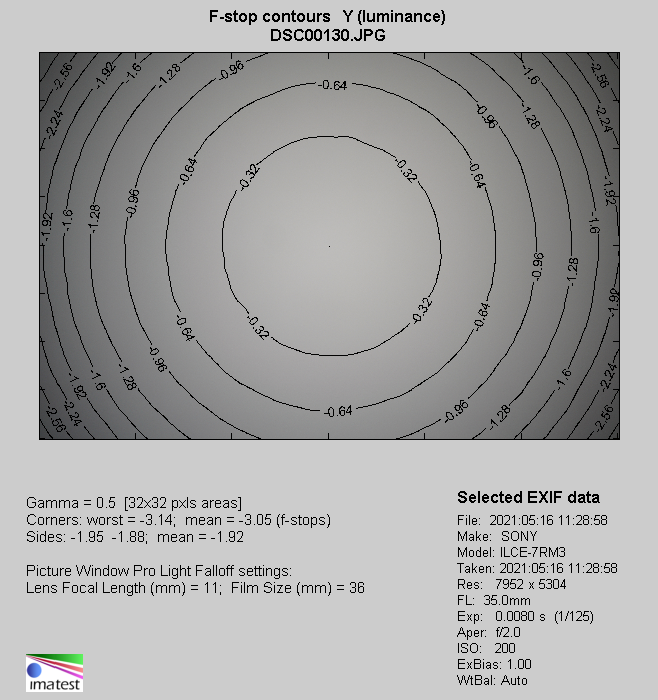

Sony A7R III, JPEG, f/2.0
Voigtlander Apo Lanthar 35 mm f/2 Aspherical  - Vignetting
