LensTip.com

Lens review

Nikon Nikkor Z MC 50 mm f/2.8

5 July 2021
Maciej Latałło

8. Vignetting

First let's check vignetting on the smaller APS-C/DX sensor – appropriate thumbnails you can find below.

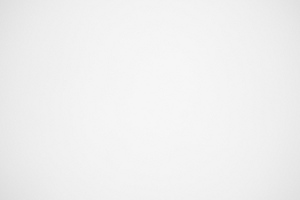

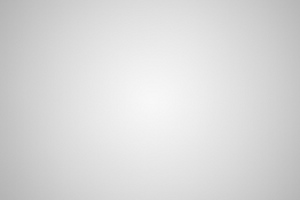

Z7, APS-C/DX, f/2.8 Z7, APS-C/DX, f/4.0
Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting


At the maximum relative aperture vignetting is noticeable, reaching 26% (−0.87 EV), but not especially high. By f/4.0 this aberration's level decreases to an imperceptible value of 9% (-0.27 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger full frame sensor the vignetting becomes a bit more bothersome and photos below show it quite clearly.

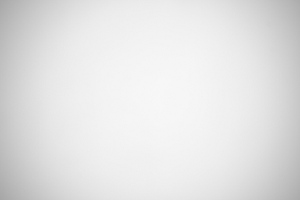

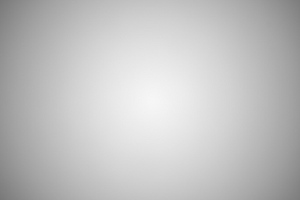

Z7, FF, f/2.8 Z7, FF, f/4.0
Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting

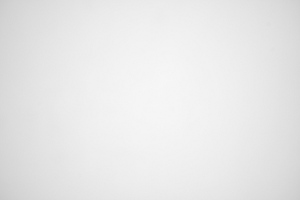

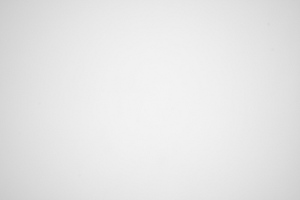

Z7, FF, f/5.6 Z7, FF, f/8.0
Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting


The loss of light in frame corners at the maximum relative aperture reaches 50% (-1.99 EV). It's a lot but still the situation is better than the performance of lenses designed for full frame mirrorless cameras – in their case vignetting at the maximum relative aperture is rarely lower than 2 EV.

On stopping down the aperture to f/4.0 vignetting decreases to 31% (-1.07 EV), and by f/5.6 it drops further to 17% (-0.54 EV). Another slight decrease of this aberration can be observed by f/8.0, where it amounts to 15% (-0.48 EV). Further stopping down doesn't produce any measureable effects in this area.

Nikon Z7, JPEG, f/2.8
Nikon Nikkor Z MC 50 mm f/2.8 - Vignetting
