Polarizing filters test

10 August 2009
Szymon Starczewski

12. Fujiyama Digital DHG Circular P.L.D. 72 mm

Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm
Fujiyama Digital DHG Circular P.L.D 72 mm
Price: 240 PLN


Fujiyama is a brand belonging to Marumi. Products of this company are valued by photographers on account of good price/quality ratio. Filters with DHG symbol are equipped with improved antireflection coatings and the glass edges are blackened to avoid internal reflections.

Results of the test

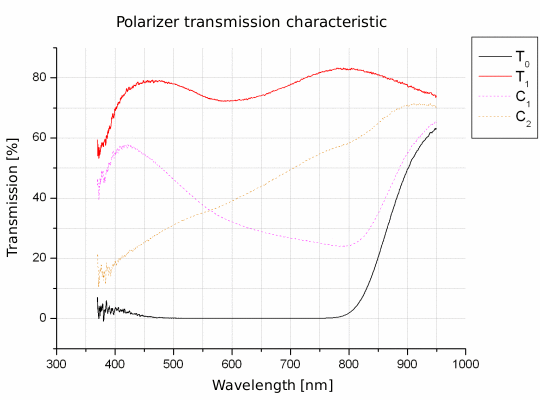

Transmission and extinction coefficient
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Red color extinction coefficient: 4.01E-4 - Score: 3.5/4
Green color extinction coefficient: 4.79E-4 - Score: 3.5/4
Blue color extinction coefficient: 1.92E-2 - Score: 0.5/4
Mean transmission of the whole spectrum: 38.04% - Score: 2.61/3
Score:
10.11/15
Flares
Without filter
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm

With filter
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm

Score:
5.25/7.5

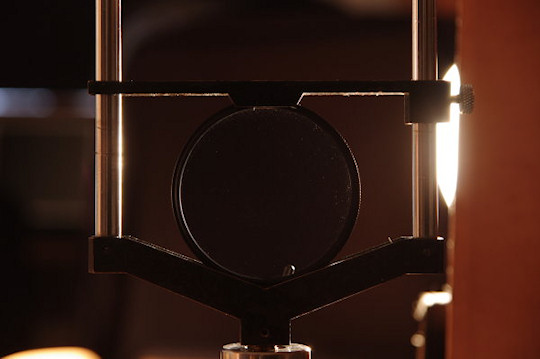

Scattering
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm

Luminance: 15.7
Score:
4.97/5
Vignetting
Edge darkening: 2.6%
Score:
4.11/5

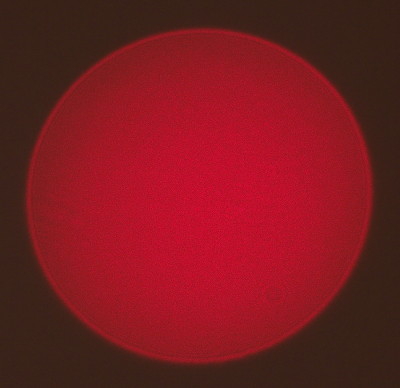

Homogeneity
Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm

Without reservation
Score:
5/5
Final score
Overall ranking: 2nd place
Econo-ranking: 1st place
29.4/37.5 pts (78.4 %)
2.17 pts

Usage

The ring works smoothly and lightly. Even though it’s a slim version, it’s convenient to use.

Summary

2nd place in the overall ranking (29.4/37.5)
The transmission curve fits in the range 70-80%, the local minimum at around 600 nm is not larger than 10%. The extinction coefficient of around 0.4/1000 is good for a foil polarizer. Violet color is not extinguished entirely, but it’s also the affliction of other filters. C1 and C2 graphs indicate that we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum. This filter costs two or three times less than some competitors’ products, still it showed them their place. It copes very well with extinguishing an unwanted direction of light polarization, the mean transmission is large too (reaches 38%). It was made of top shelf materials, maximum grades for homogeneity and scattering. Looks like the only major flaw are flares. Still, it didn’t prevent this filter from winning in our econo-ranking.

The editorial staff of lenstip.com have decided to award this filter with “Good purchase according to LensTip.com” for being the first on the list in the econo-ranking of polarizing filters.

Polarizing filters test - Fujiyama Digital DHG Circular P.L.D. 72 mm


Filter for tests was lent by Fotozakupy.pl
