Polarizing filters test

10 August 2009
Szymon Starczewski

15. Heliopan ES Pol circ. Kasemann 72 mm

Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm

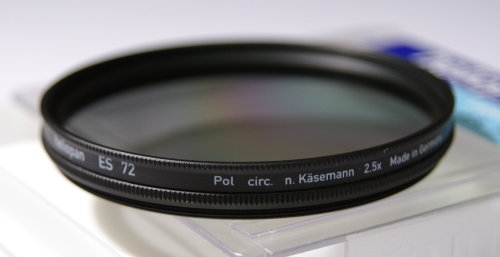

Heliopan ES Pol circ. Kasemann 72 mm
Price: 559 PLN


Heliopan is a known German company, whose history dates back to 1948. You can find a whole range of filters of different diameters and mountings in their offer. The producer took care of quality and durability using Schott glass and Protect Multi Coatings (SH-PMC). Heliopan has always been identified with high quality… and price.

Results of the test

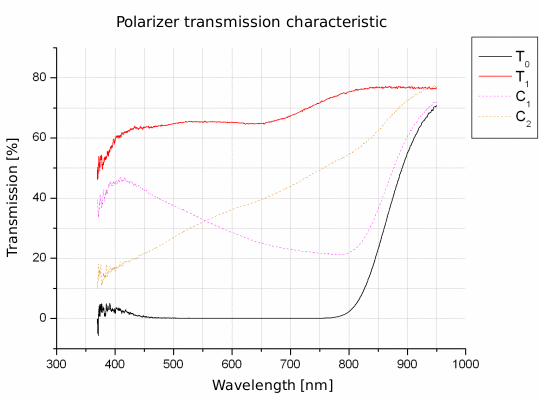

Transmission and extinction coefficient
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Red color extinction coefficient: 5.09E-4 - Score: 3/4
Green color extinction coefficient: 4.76E-4 - Score: 3.5/4
Blue color extinction coefficient: 2.23E-2 - Score: 0.5/4
Mean transmission of the whole spectrum: 32.65% - Score: 1.53/3
Score:
8.53/15
Flares
Without filter
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm

With filter
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm

Score:
3/7.5

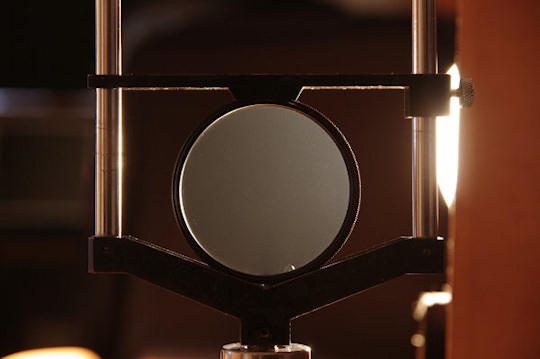

Scattering
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm

Luminance: 79.2
Score:
2.62/5
Vignetting
Edge darkening: 3.8%
Score:
3.44/5

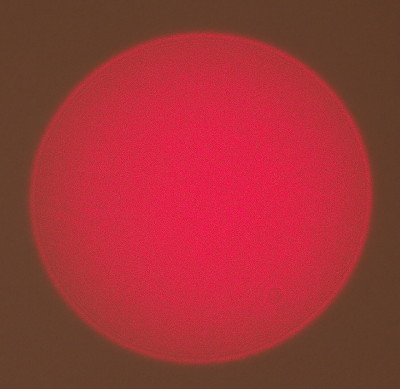

Homogeneity
Polarizing filters test - Heliopan ES Pol circ. Kasemann 72 mm

Slight streakiness
Score:
4.5/5
Final score
Overall ranking: 17th place
Econo-ranking: 22th place
22.1/37.5 pts (58.9 %)
-7.43 pts

Usage

The ring turns smoothly, with a little unequal resistance. Cleaning isn’t troublesome. No problems during the tests.

Summary

17th place in the overall ranking (22.1/37.5)
The transmission curve is flat until 700 nm, then it rises a little. The coefficient of extinction of about 0.5/1000 is good for a foil polarizer. Violet color isn’t extinguished entirely. C1 and C2 graphs indicate that we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum. Very large scattering can be observed not only in results of the tests, but also in pictures. When you add flares to the list, you need to ask yourself if it’s worth to pay so much for this filter.

Filter for tests was lent by Pstryk.pl
