Polarizing filters test

10 August 2009
Szymon Starczewski

8. B+W Slim KSM C-POL MRC 72 mm

Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

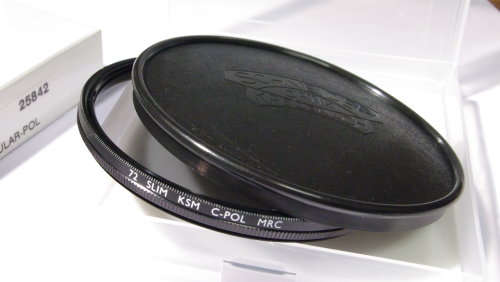

B+W Slim KSM C-POL MRC 72 mm
Price: 479 PLN


B+W filters are manufactured by German Schneider Optics and definitely don’t belong to the cheapest ones. They’re covered by hard, thin MRC coatings which protect them against scratches. The respect of photographers, that these filters have, should go hand in hand with the highest quality. Slim polarizers allow us to work with wide-angle lenses without additional vignetting coming from the ring.

Results of the test

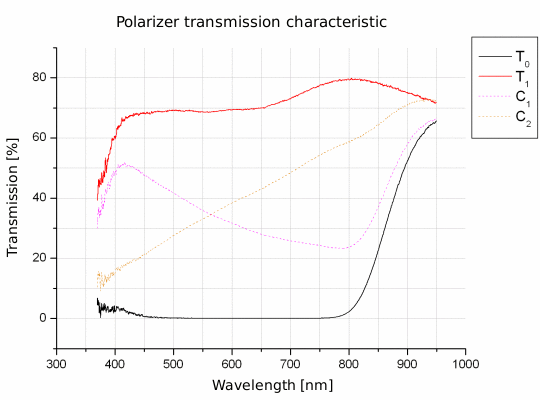

Transmission and extinction coefficient
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Red color extinction coefficient: 7.91E-4 - Score: 3/4
Green color extinction coefficient: 9.27E-4 - Score: 3/4
Blue color extinction coefficient: 2.41E-2 - Score: 0.5/4
Mean transmission of the whole spectrum: 34.74% - Score: 1.95/3
Score:
8.45/15
Flares
Without filter
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

With filter
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

Score:
7.5/7.5

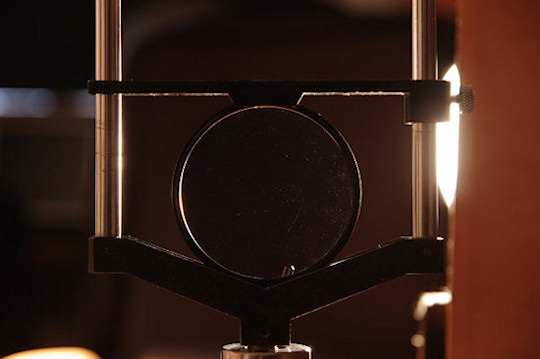

Scattering
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

Luminance: 17
Score:
4.93/5
Vignetting
Edge darkening 3.3%
Score:
3.72/5
Homogeneity
Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

Without reservation
Score:
5/5
Final score
Overall ranking: 1st place
Econo-ranking: 7th place
29.6/37.5 pts (78.9 %)
0.34 pts

Usage

The ring turns smoothly, cleaning wasn’t too troublesome. The filter is well-made, it’s impossible to find fault with its construction. We get a cap in the kit.

Summary

1st place in the overall ranking
Similarly to other products of this manufacturer, the transmission of light of the azimuth parallel to the light is flat in majority of the visible spectrum. Pictures may have little warmer colors than in reality. The extinction coefficient of about 1/1000 is typical for most modern foil polarizers. The filter becomes transparent in infrared. We observe slight transmission of blue color, which should be extinguished. C1 and C2 graphs indicate that we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum. Well-deserved first place. No flares in the pictures, polarizer of very good parameters, top shelf components combined with precise workmanship (and reasonably high price).

The editorial staffs of lenstip.com have decided to award the filter with “The choice of LensTip.com” for being the first on the list of circular polarizers’ overall ranking.

Polarizing filters test - B+W Slim KSM C-POL MRC 72 mm

Filter for tests was lent by Pstryk.pl
