LensTip.com

Lens review

Voigtlander Nokton 10.5 mm f/0.95

18 July 2015
Arkadiusz Olech

8. Vignetting

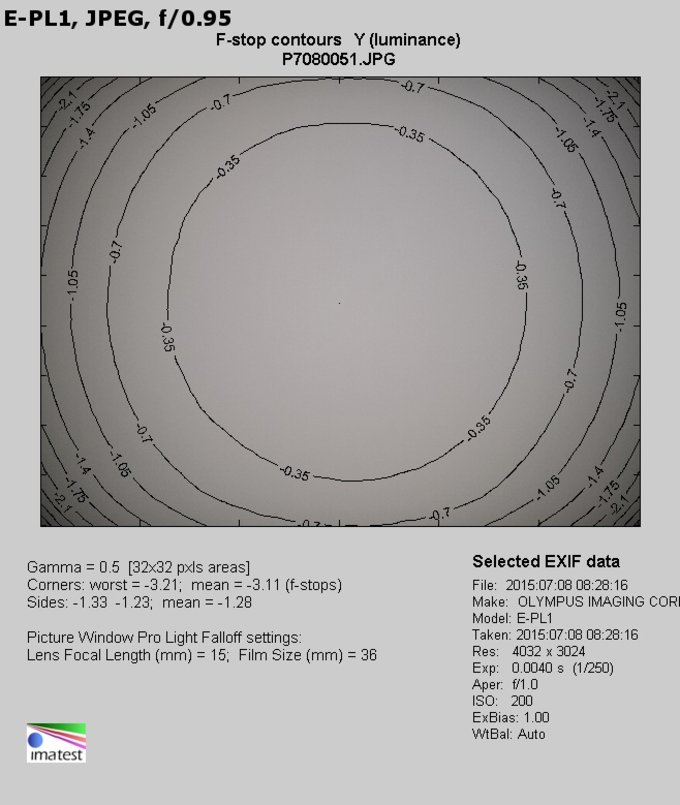

Thumbnails shown below allow you to assess the vignetting performance of the tested lens when cooperating with the sensor of the Olympus E-PL1. As we’ve already proven in the previous chapters JPEG files are not corrected automatically so their vignetting level is, within a margin of error, very similar to the vignetting you see in RAW files.

Olympus E-PL1, f/0.95 Olympus E-PL1, f/1.4
Voigtlander Nokton 10.5 mm f/0.95 - Vignetting Voigtlander Nokton 10.5 mm f/0.95 - Vignetting
Olympus E-PL1, f/2.0 Olympus E-PL1, f/2.8
Voigtlander Nokton 10.5 mm f/0.95 - Vignetting Voigtlander Nokton 10.5 mm f/0.95 - Vignetting


At the maximum relative aperture the losses of light in the frame corners amount to as much as 66% (-3.11 EV). It is a huge value and, what’s interesting, comparable to the one we observed in the case of the Nokton 0.95/17.5. The vignetting remains still very high by f/1.4 and we determined its level as 46% (-1.78 EV); By f/2.0 it remains still visible, getting to 28% (-0.94 EV). A moderate level of vignetting can be observed only by f/2.8 where it is 17% (-0.53 EV). Further stopping down doesn’t cause any noticeable vignetting changes.
