LensTip.com

Lens review

Samyang 21 mm f/1.4 ED AS UMC CS

8 December 2015
Arkadiusz Olech

8. Vignetting

Let’s check the vignetting performance of the tested lens both for JPEG and RAW files developed by independent software.

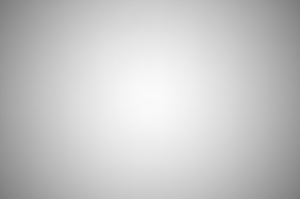

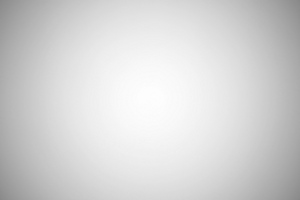

X-E1, JPEG, f/1.4 X-E1, RAW, f/1.4
Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting

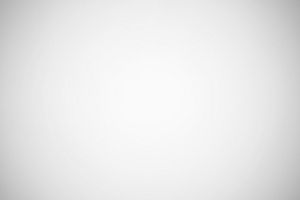

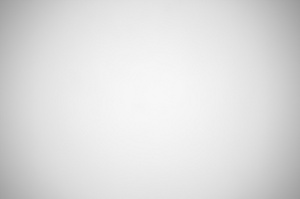

X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting

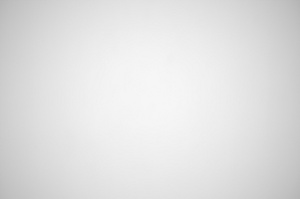

X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting


In the case of JPEG files at the maximum relative aperture the vignetting reaches a significantly high level of 45% (−1.73 EV). By f/2.0 it decreases to 29% (−1.00 EV) and by f/2.8 it still is easy to perceive, amounting to 20% (−0.64 EV). Further stopping down is not especially effective as by f/4.0 that aberration reaches a value of 19% (−0.62 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

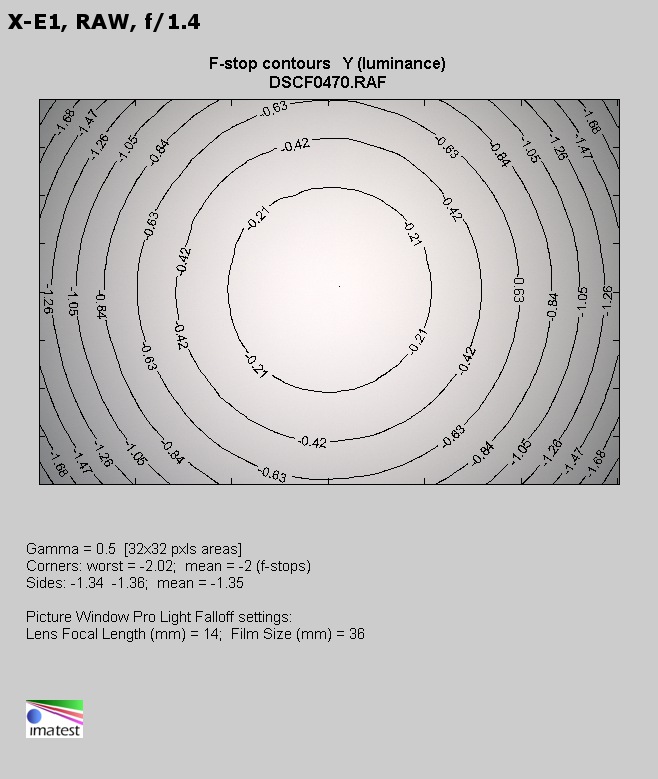

The results you get for RAW files are just slightly higher. By f/1.4 the brightness loss in the frame corners amounts to 50% (−2.00 EV), by f/2.0 it decreases to 36% (−1.28 EV), and by f/2.8 it drops further to 26% (−0.87 EV). Like in the previous case after that point the stopping down of the aperture doesn’t improve the situation almost at all because by f/4.0 and by f/5.6 the vignetting level amounts to 25% (−0.83 EV).

Samyang 21 mm f/1.4 ED AS UMC CS - Vignetting
