Canon EF 400 mm f/4 DO IS II USM

26 August 2017
Arkadiusz Olech

8. Vignetting

First let’s check how the Canon 400 mm DO II deals with vignetting on the smaller sensor of the Canon 50D – appropriate thumbnails for the lens itself and the combo with the TC 1.4x III are shown below.

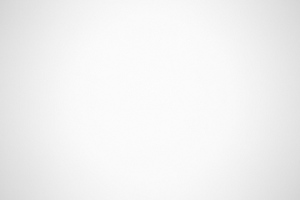

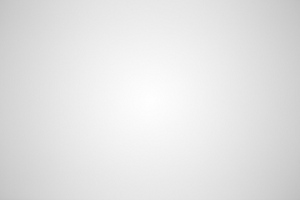

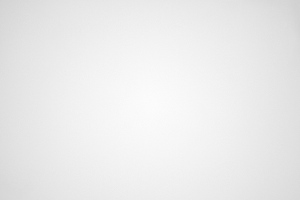

Canon 50D, 400 mm, f/4.0 Canon 50D, 400 mm, f/5.6
Canon EF 400 mm f/4 DO IS II USM - Vignetting Canon EF 400 mm f/4 DO IS II USM - Vignetting

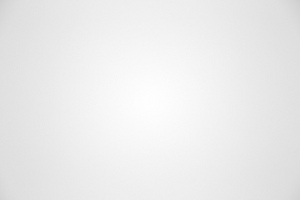

Canon 50D, 560 mm (TC), f/5.6 Canon 50D, 560 mm (TC), f/8.0
Canon EF 400 mm f/4 DO IS II USM - Vignetting Canon EF 400 mm f/4 DO IS II USM - Vignetting


You don’t encounter any problems at any combination. The vignetting is 15% (−0.47 EV) for just the lens and the maximum relative aperture; then it decreases to an imperceptible level of 7% (−0.20 EV) on stopping down the aperture by 1 EV. An even better situation you see after attaching the converter - by f/5.6 the brightness loss amounts to just 12% (−0.38 EV), decreasing to 4% (−0.12 EV) on stopping down the aperture to f/8.0.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes on passing to full frame – thumbnails we got with the help of the Canon EOS 5D Mark III are shown below.

Canon 5D III, 400 mm, f/4.0 Canon 5D III, 400 mm, f/5.6
Canon EF 400 mm f/4 DO IS II USM - Vignetting Canon EF 400 mm f/4 DO IS II USM - Vignetting
Canon 5D III, 560 mm (TC), f/5.6 Canon 5D III, 560 mm (TC), f/8.0
Canon EF 400 mm f/4 DO IS II USM - Vignetting Canon EF 400 mm f/4 DO IS II USM - Vignetting

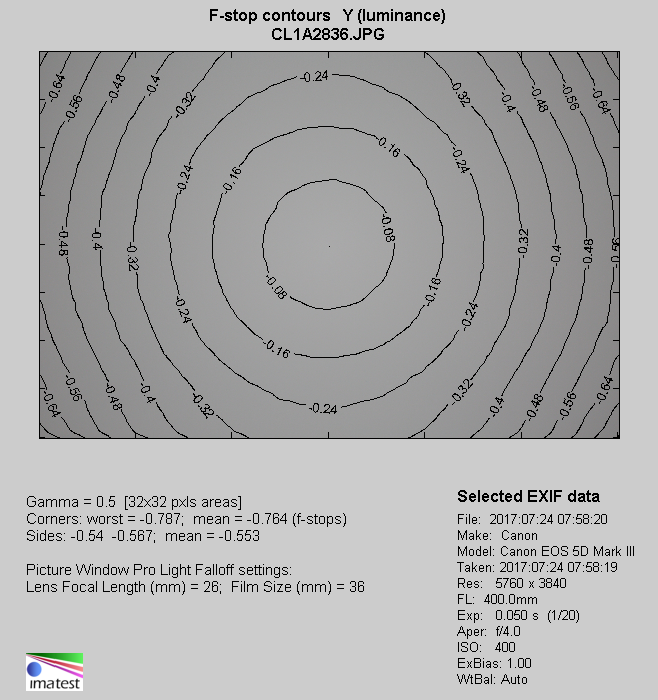

In this case the lens fares very well too. At the maximum relative aperture you can notice the light fall-off effect but it reaches just a moderate level of 23% (−0.76 EV). The problems end by f/5.6 and f/8.0, where the values, measured by us, were, respectively 14% (−0.45 EV) and 8% (−0.24 EV).

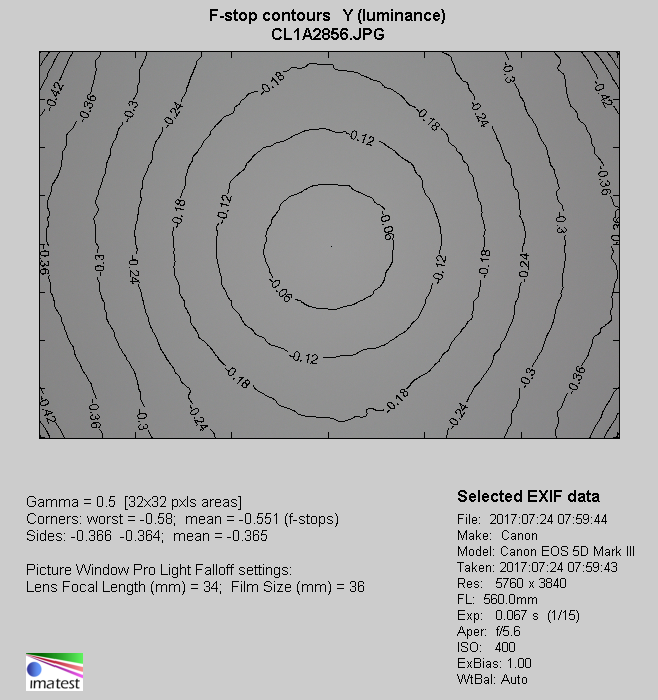

After attaching the teleconverter the situation even improves. By f/5.6 the vignetting is barely perceptible, reaching 17% (−0.55 EV), and on stopping down the aperture to f/8.0 it decreases to an invisible value of 5% (−0.16 EV).
