LensTip.com

Lens review

Sony FE 35 mm f/1.4 GM

13 January 2021
Maciej Latałło

8. Vignetting

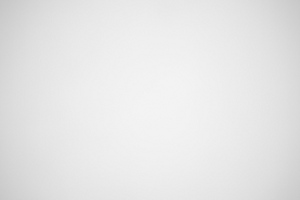

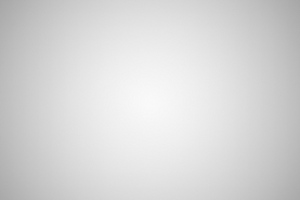

First let's check vignetting performance on the smaller APS-C sensor – appropriate thumbnails are shown below.

A7R II, APS-C, f/1.4 A7R II, APS-C, f/2.0
Sony FE 35 mm f/1.4 GM - Vignetting Sony FE 35 mm f/1.4 GM - Vignetting


At the maximum relative aperture you can notice vignetting without a problem as it reaches 32% (−1.12 EV). These problems end by f/2.0 as the level of this aberration drops to 17% (−0.56 EV). By f/2.8 it decreases further to 15% (−0.46 EV) and after that point stopping down doesn't have any measureable influence on brightness loss.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

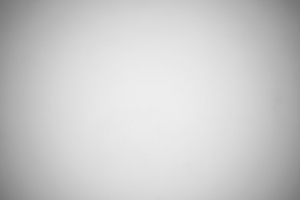

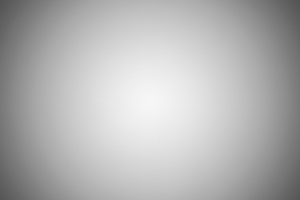

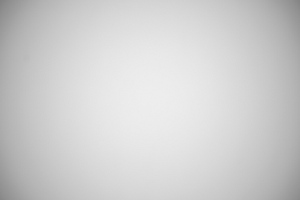

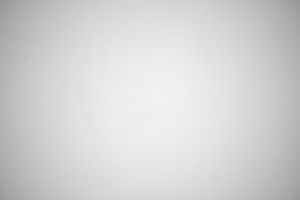

After passing to the bigger, full frame sensor there are much more problems and the photos we present below show them very well.

A7R II, FF, f/1.4 A7R II, FF, f/2.0
Sony FE 35 mm f/1.4 GM - Vignetting Sony FE 35 mm f/1.4 GM - Vignetting
A7R II, FF, f/2.8 A7R II, FF, f/4.0
Sony FE 35 mm f/1.4 GM - Vignetting Sony FE 35 mm f/1.4 GM - Vignetting


The loss of light at the maximum relative aperture is really huge, reaching as much as 66% (−3.08 EV). It remains noticeable also by f/2.0, where it amounts to 50% (−2.00 EV). What's more, further stopping down is not as efficient as you would expect. By f/2.8 the light fall-off in the frame corners is 43% (−1.63 EV), and by f/4.0 it decreases to 37% (−1.34 EV) ; after that point the lens stops reacting on any stopping down. It would be difficult not to complain about such a performance.

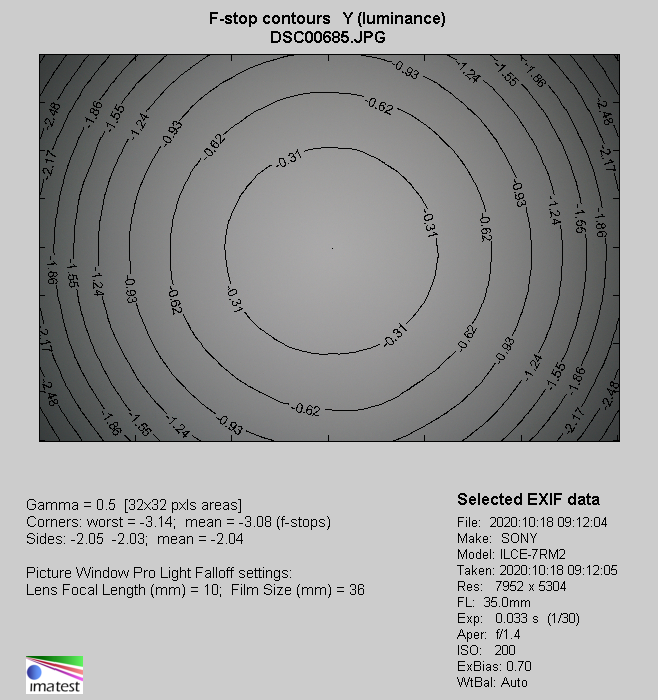

Sony A7R II, JPEG, f/1.4
Sony FE 35 mm f/1.4 GM - Vignetting

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value for every image, expressed in percents, shows the area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Sony FE 35 mm f/1.4 GM - Vignetting

f/1.4 f/2 f/2.8 f/4
