LensTip.com

Lens review

Sigma C 24 mm f/3.5 DG DN

19 May 2021
Maciej Latałło

8. Vignetting

First let's check vignetting performance on the smaller APS-C sensor – appropriate thumbnails you can find below.

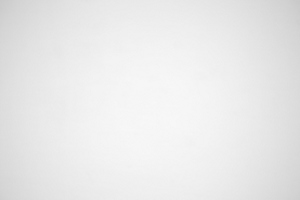

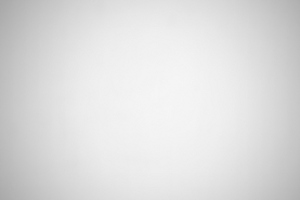

A7R II, APS-C, f/3.5 A7R II, APS-C, f/5.6
Sigma C 24 mm f/3.5 DG DN - Vignetting Sigma C 24 mm f/3.5 DG DN - Vignetting


The smaller sensor doesn't give you any reasons to worry. At the maximum relative aperture vignetting reaches 29% (−1.00 EV) and it decreases to 25% (−0.83 EV) on slight stopping down the aperture to f/4.0. By f/5.6 you can observe further decrease, this time to 17% (−0.54 EV), and after passing to f/8.0 you don't see any difference, with vignetting reaching 16% (−0.51 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The parameters of the tested lens are quite untypical so we were very curious how it would perform on full frame in this category.

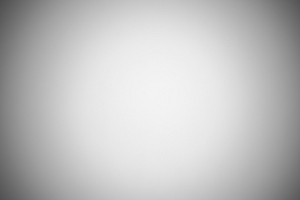

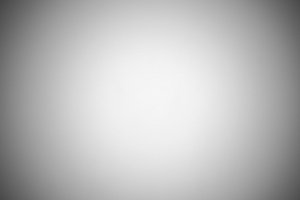

A7R II, FF, f/3.5 A7R II, FF, f/4.0
Sigma C 24 mm f/3.5 DG DN - Vignetting Sigma C 24 mm f/3.5 DG DN - Vignetting

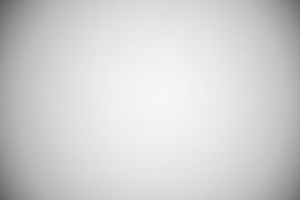

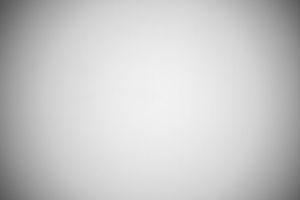

A7R II, FF, f/5.6 A7R II, FF, f/8.0
Sigma C 24 mm f/3.5 DG DN - Vignetting Sigma C 24 mm f/3.5 DG DN - Vignetting


There is a lot of problems. Light fall-off in the corners of the frame amounts to as much as 70% (−3.46 EV). It is a huge value, but you should mention the fact that the rival Samyang 2.8/24 fared even worse. Still, the Sony and the Tamron managed to perform better. On stopping down the aperture to f/4.0 you see vignetting decrease to 65% (−3.07 EV), and after employing f/5.6 relative aperture it drops to 61% (−2.76 EV). Further stopping down causes a consistent but slow decrease of vignetting values. By f/8.0, f/11.0, and f/16.0 we got the following results: 57% (−2.47 EV), 53% (−2.19 EV), and 48% (−1.90 EV) respectively. Even changing the aperture from f/16.0 to f/22.0 allows you to decrease vignetting by several percent, to 43% (−1.64 EV).

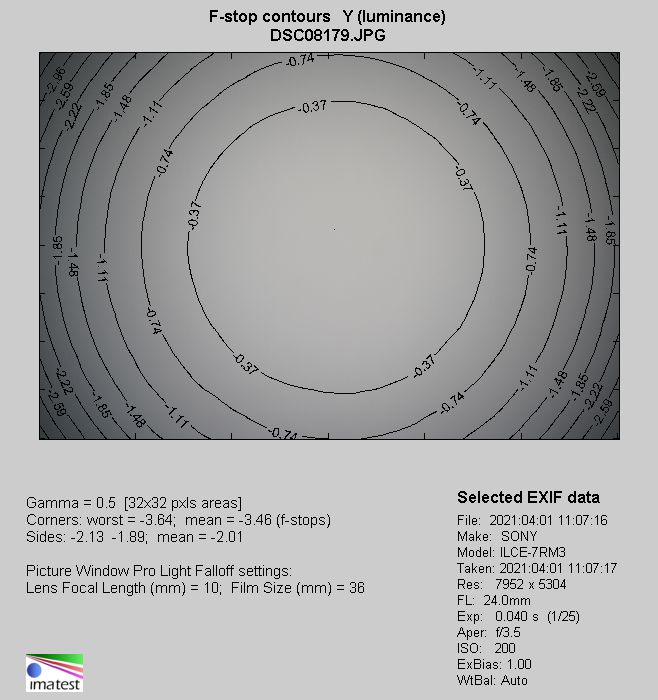

Sony A7R III, JPEG, f/3.5
Sigma C 24 mm f/3.5 DG DN - Vignetting
