LensTip.com

Lens review

Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO

26 October 2021
Maciej Lata││o

6. Distortion

It is not easy to correct a lens with angles of view ranging from 107 to 47 degrees, so an instrument that can be used as an ultra wide-angle and a standard device at the same time. The question is how important it was for Olympus to correct that aberration – after all Mircro 4/3 system optics is known for letting camera software handle this task.

Indeed, if you examine corrected JPEG files, you find out distortion is not such a big problem. It might be called noticeable but mainly at 8 mm where its barrel variation amounts to -1.35%. After passing to 10 mm it becomes practically imperceptible, dropping to -0.32%. The higher focal lengths results are similar, at 14, 18, and 25 mm being, respectively: -0.29%, -0.23% i -0.16%.

Still, the real distortion performance can be noticed only on RAW files developed with independent software. At the 8 mm focal length the situation is really bad, with barrel distortion reaching -6.41%; at 10 mm it improves only slightly, but the result of -4.72% remains high. A more significant decrease can be seen at 14 mm, with a value of -1.88%. Distortion becomes zero near 18 mm – officially we got there +0.16%. At the 25 mm focal length you already deal with slight pincushion of +1.53%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Looking at the results, presented above it seems Olympus didn't give up correction of distortion completely. With such wide angles of view we've seen lenses with distortion being -8 or -9%; a level of -6.4% suggest they did try to correct it a bit. Of course it is also obvious distortion correction didn't make the list of priorities here. Pity...

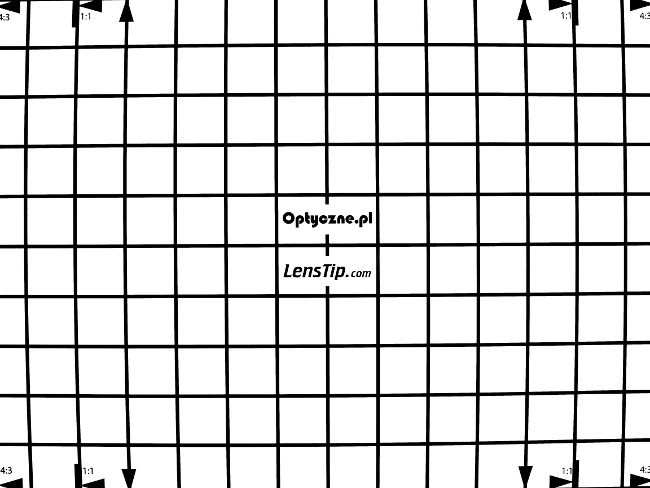

Olympus E-M5 II, JPEG, 8ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

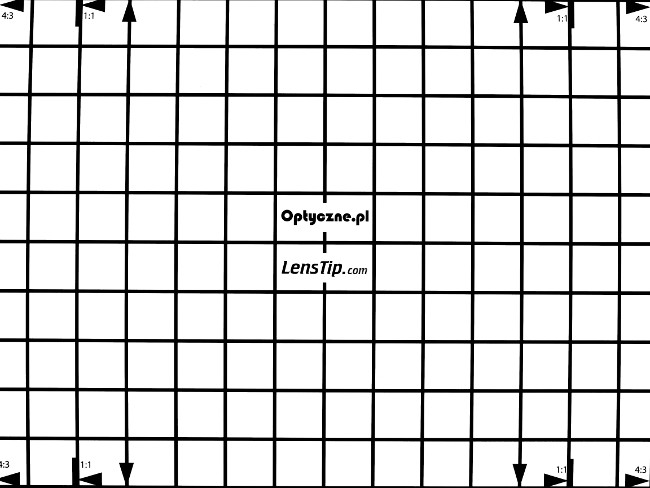

Olympus E-M5 II, JPEG, 10ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

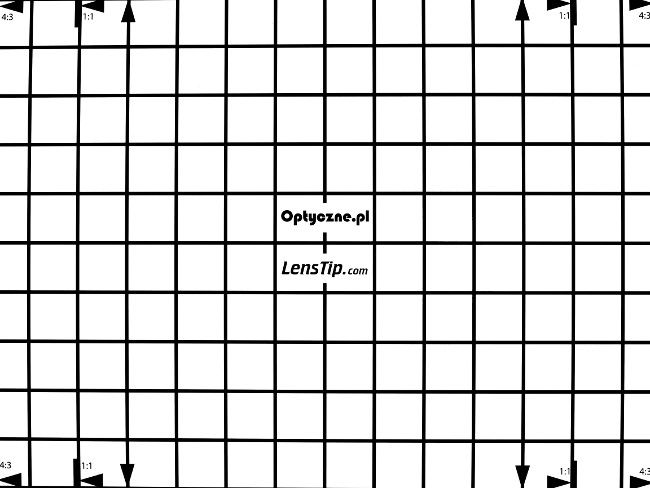

Olympus E-M5 II, JPEG, 14ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

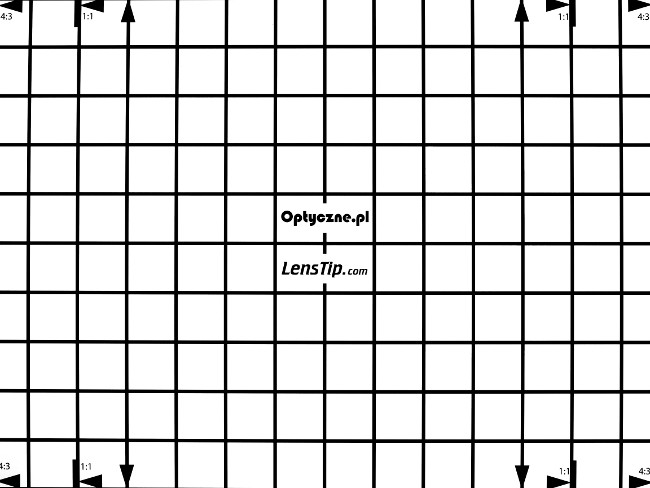

Olympus E-M5 II, JPEG, 18ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

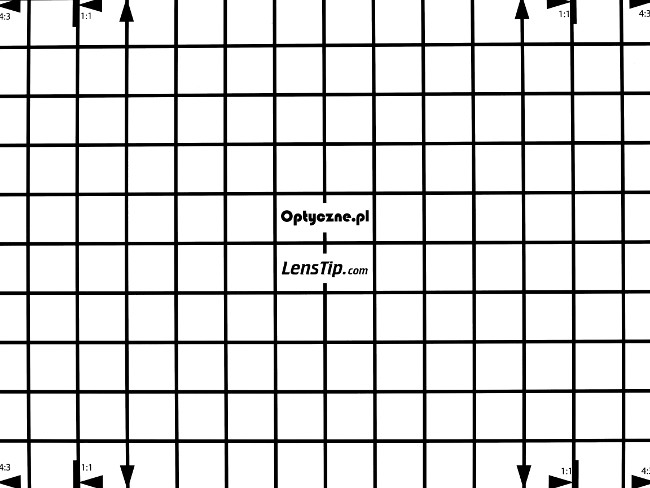

Olympus E-M5 II, JPEG, 25ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

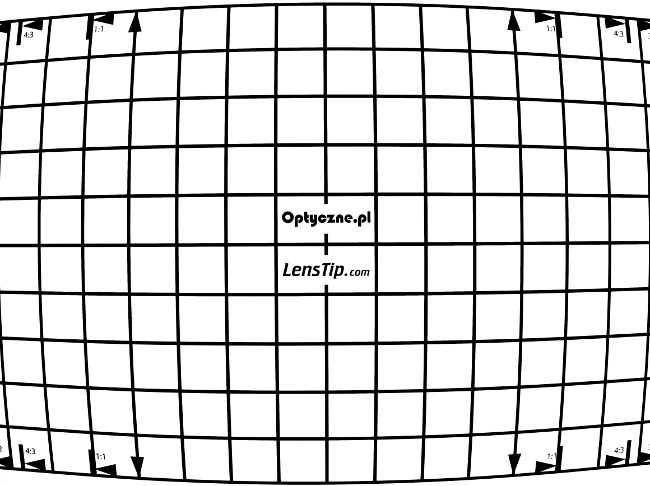

Olympus E-M5 II, RAW, 8ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

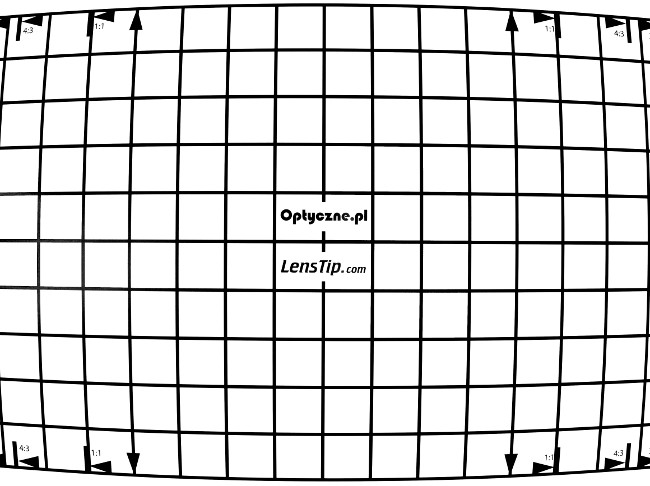

Olympus E-M5 II, RAW, 10ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

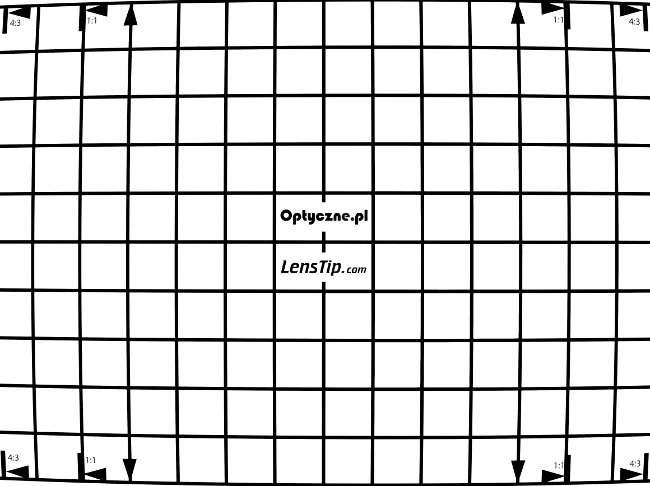

Olympus E-M5 II, RAW, 14ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

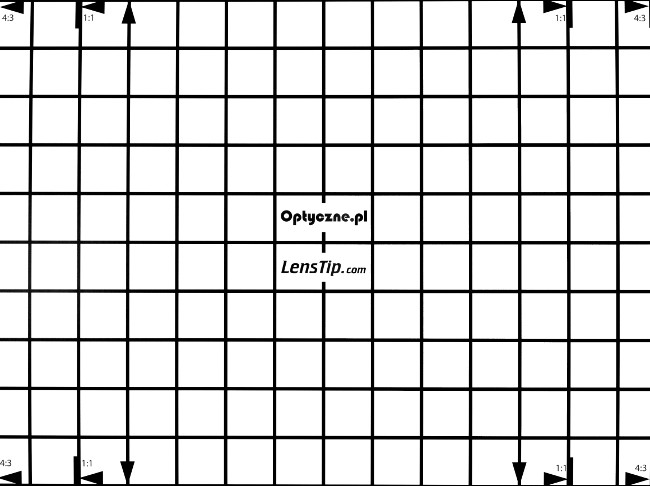

Olympus E-M5 II, RAW, 18ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion

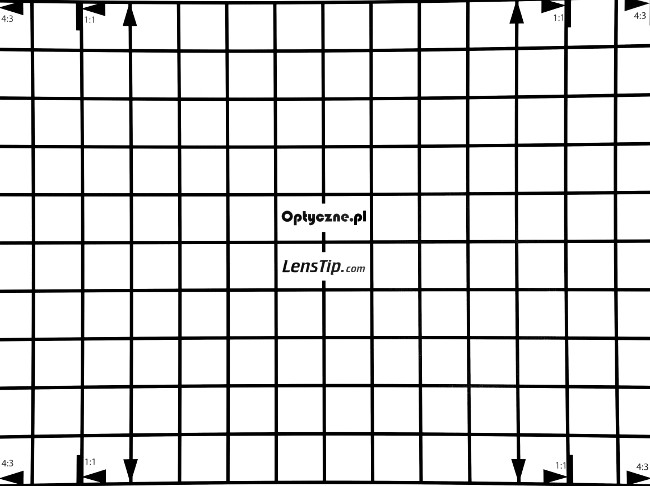

Olympus E-M5 II, RAW, 25ámm
Olympus M.Zuiko Digital ED 8-25 mm f/4 PRO - Distortion
