LensTip.com

Lens review

Nikon Nikkor Z 40 mm f/2.0

26 November 2021
Maciej Latałło

8. Vignetting

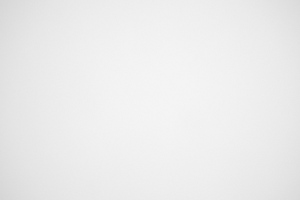

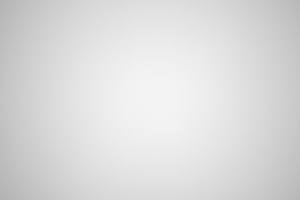

First let's check vignetting levels on the smaller APS-C/DX sensor – appropriate thumbnails you can find below.

Z7, APS-C/DX, f/2.0 Z7, APS-C/DX, f/2.8
Nikon Nikkor Z 40 mm f/2.0 - Vignetting Nikon Nikkor Z 40 mm f/2.0 - Vignetting


At the maximum relative aperture vignetting is noticeable, reaching 25% (−0.82 EV), but it cannot be called high. By f/2.8 and f/4.0 the aberration decreases to an imperceptible level, reaching respectively 11% (−0.34 EV) and 8% (−0.25 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

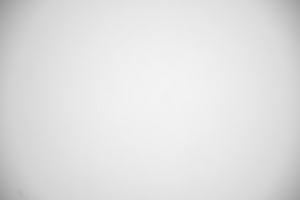

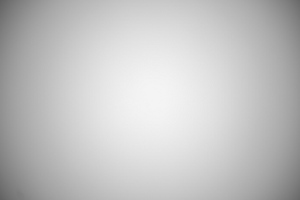

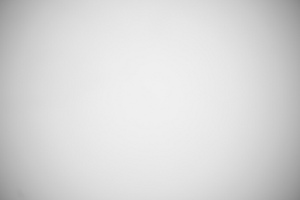

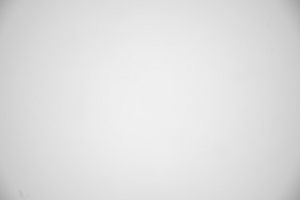

After passing to a bigger sensor vignetting becomes more pronounced and photographs below show it very well.

Z7, FF, f/2.0 Z7, FF, f/2.8
Nikon Nikkor Z 40 mm f/2.0 - Vignetting Nikon Nikkor Z 40 mm f/2.0 - Vignetting
Z7, FF, f/4.0 Z7, FF, f/5.6
Nikon Nikkor Z 40 mm f/2.0 - Vignetting Nikon Nikkor Z 40 mm f/2.0 - Vignetting


The loss of brightness in frame corners at the maximum relative aperture reaches as much as 57% (−2.46 EV). It's a lot but, after all, a much bigger Batis 2/40 showed here a result of 55%, exactly the same within the margin of error.

On stopping down the aperture to f/2.8 vignetting decreases to 41% (−1.51 EV), and by f/4.0 it drops further to 35% (−1.2 EV). Another slight decrease of this aberration can be noticed by f/5.6, where light fall-off reaches 29% (−0.48 EV), and by f/8.0, where we got a result of 23% (−0.77 EV). By f/11.0 and f/16.0 apertures the vignetting reached 20% (−0.63 EV) and 19% (−0.61 EV) respectively.

Nikon Z7, JPEG, 40 mm, f/2.0
Nikon Nikkor Z 40 mm f/2.0 - Vignetting
