LensTip.com

Lens review

Canon EF-S 24 mm f/2.8 STM

6 May 2015
Arkadiusz Olech

8. Vignetting

If I had to choose a category where a “pancake” lens is most likely to encounter serious problems I would place my bet on the vignetting without hesitation. Small dimensions of the instrument along with a wide angle of view sound like a perfect recipe for a disaster.

Let’s check how the Canon EF-S 24 mm f/2.8 STM managed to perform in this category.

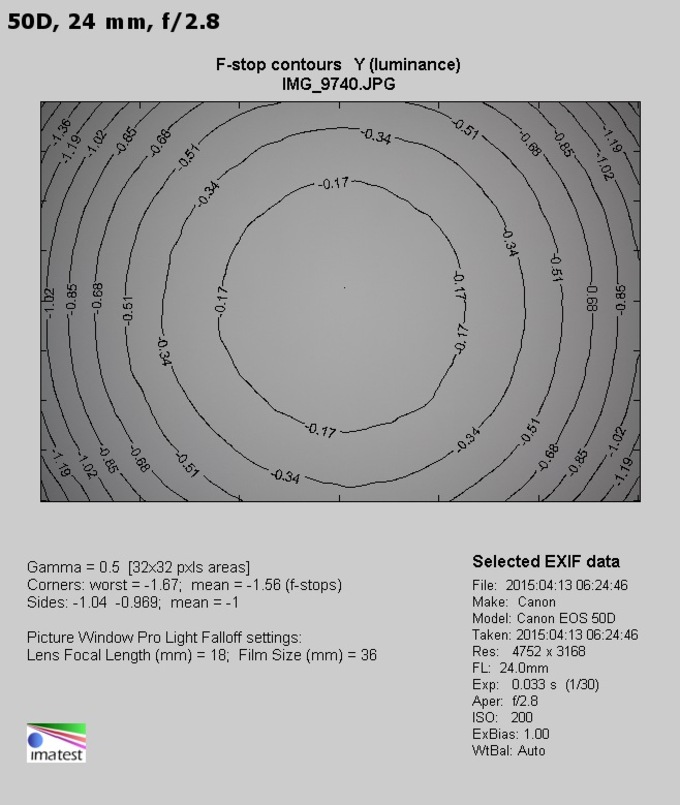

Canon 50D, f/2.8 Canon 50D, f/4.0
Canon EF-S 24 mm f/2.8 STM  - Vignetting Canon EF-S 24 mm f/2.8 STM  - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


According to our expectations the vignetting level is seriously high but still you can’t call it huge. At the maximum relative aperture you have to take into account a loss of 42% (−1.56 EV) in the frame corners. On stopping down to f/4.0 you can decrease that aberration’s level to 19% (−0.63 EV) so it becomes moderate. An almost complete disappearance of the vignetting problems can be achieved by f/5.6 and f/8.0 where the vignetting amounts to, respectively, 11% (−0.33 EV) and 10% (−0.31 EV).

Canon EF-S 24 mm f/2.8 STM  - Vignetting
