Sony FE 400-800 mm f/6.3-8 G OSS
8. Vignetting

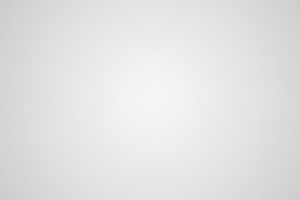

| A7R IIIa, APS-C, JPEG, 400 mm, f/6.3 | A7R IIIa, APS-C, JPEG, 400 mm, f/8.0 |
|
|

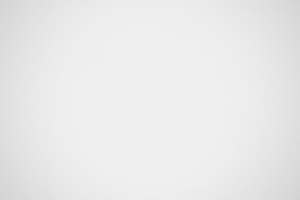

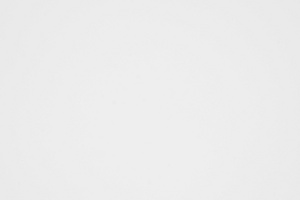

| A7R IIIa, APS-C, JPEG, 600 mm, f/8.0 | A7R IIIa, APS-C, JPEG, 600 mm, f/11.0 |
|
|

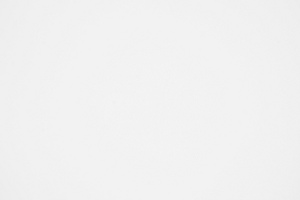

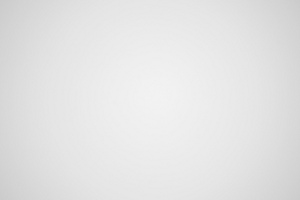

| A7R IIIa, APS-C, JPEG, 800 mm, f/8.0 | A7R IIIa, APS-C, JPEG, 800 mm, f/11.0 |
|
|
In case of the smaller detector the problems are negligible. At 400 mm and the maximum relative aperture the brightness loss in frame corners amounts to just 16% (-0.50 EV) and it decreases to an imperceptible level of 6% (-0.18 EV), on stopping down the aperture to f/8.0.
Please Support UsIf you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free. |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The situation improves very slightly after swapping the focal length into 600 mm. At the maximum relative aperture, already f/8.0 in this case, vignetting reaches 11% (-0.35 EV) and it decreases to just 2% (-0.06 EV), when you stop the aperture down to f/11.0.
At 800 mm focal length vignetting increases a bit again but these are slight values. By f/8.0 this aberration reaches 15% (-0.48 EV) and it decreases to just 3% (-0.08 EV) after applying f/11.0.
Now let's check vignetting on full frame – appropriate thumbnails are presented below.

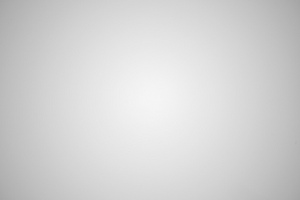

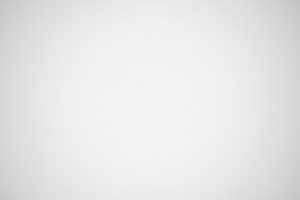

| A7R IIIa, FF, JPEG, 400 mm, f/6.3 | A7R IIIa, FF, JPEG, 400 mm, f/8.0 |
|
|

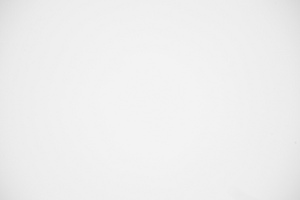

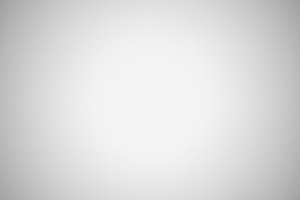

| A7R IIIa, FF, JPEG, 600 mm, f/8.0 | A7R IIIa, FF, JPEG, 600 mm, f/11.0 |
|
|

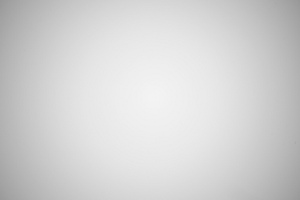

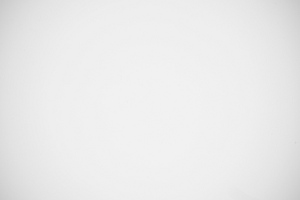

| A7R IIIa, FF, JPEG, 800 mm, f/8.0 | A7R IIIa, FF, JPEG, 800 mm, f/11.0 |
|
|
In case of the bigger detector the problems are more emphasized and it is quite understandable, but still you can't talk here about any serious slip-ups. At the combination of the 400 mm and f/6.3 aperture vignetting is 32% (-1.10 EV) and it decreases to 19% (-0.62 EV), after applying f/8.0. Stopping down by one additional EV step is able to reduce this aberration to an imperceptible level of 10% (-0.30 EV).
A very slight increase of vignetting is noticed at the longer end of the focal spectrum. At 600 mm and by f/8.0 the brightness loss in frame corners reaches 34% (-1.21 EV). Fortunately it decreases to 10% (-0.32 EV) by f/11.0 and to just 5% (-0.15 EV) by f/16.0.
At 800 mm and by f/8.0 this aberration reaches the highest level, approaching 37% (-1.32 EV). By f/11.0 it decreases to 16% (-0.52 EV), and by f/16.0 it becomes practically imperceptible, reaching only 5% (-0.14 EV).

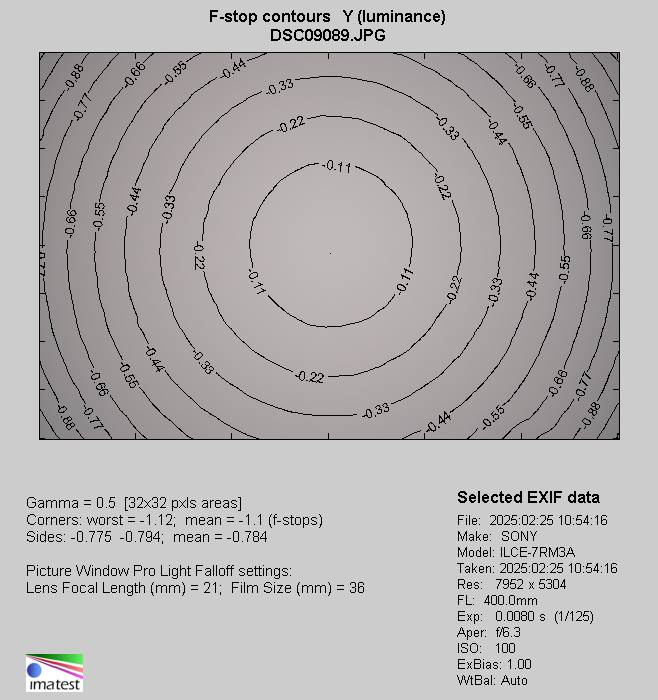

| Sony A7R IIIa, 400 mm, JPEG, f/6.3 |
 |

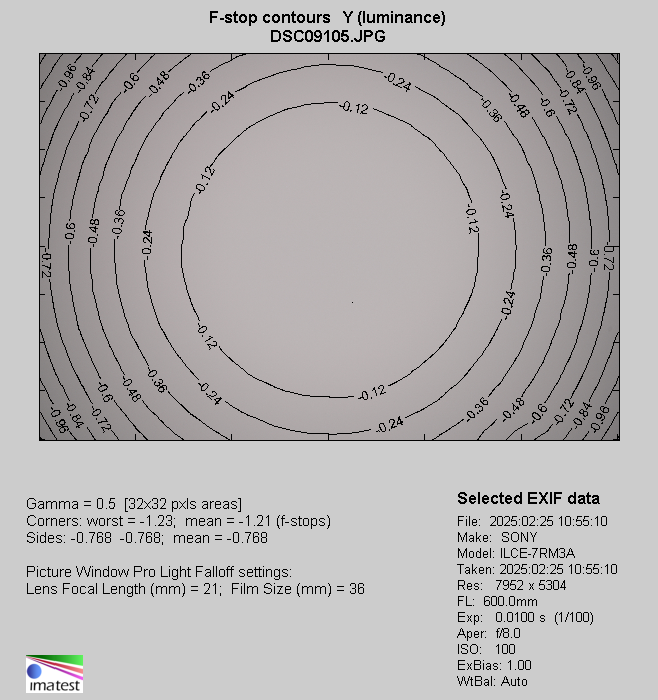

| Sony A7R IIIa, 600 mm, JPEG, f/8.0 |
 |

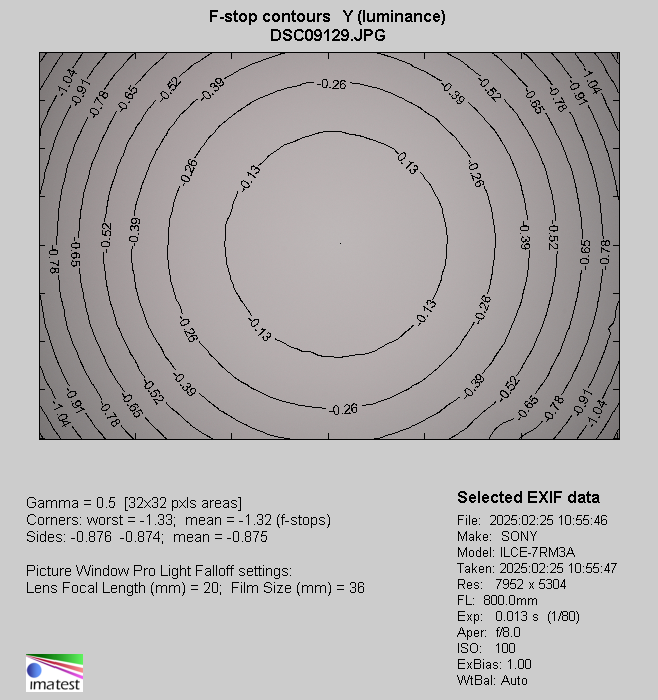

| Sony A7R IIIa, 800 mm, JPEG, f/8.0 |
 |
