Polarizing filters test

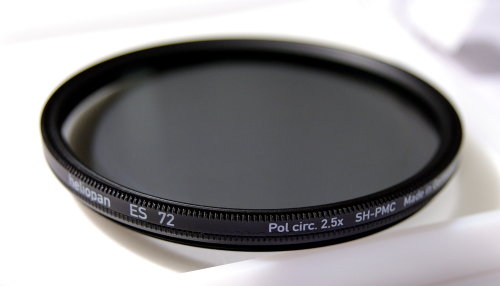

16. Heliopan ES Pol circ. SH-PMC 72 mm
 |
||
 |
||
Heliopan is a known German company, whose history dates back to 1948. You can find a whole range of filters of different diameters and mountings in their offer. The producer took care of quality and durability using Schott glass and Protect Multi Coatings (SH-PMC). Heliopan has always been identified with high quality… and price.
Results of the test
Red color extinction coefficient: 1.31E-4 - Score: 3.5/4
Green color extinction coefficient: 1.34E-4 - Score: 3.5/4 Blue color extinction coefficient: 7.61E-3 - Score: 1/4 Mean transmission of the whole spectrum: 29.8% - Score: 0.96/3 Score:
|
|
||
With filter Score:
|
|
||
Luminance: 105.3
Score:
|
|
||
| Edge darkening: 3.9% Score: |
|
||

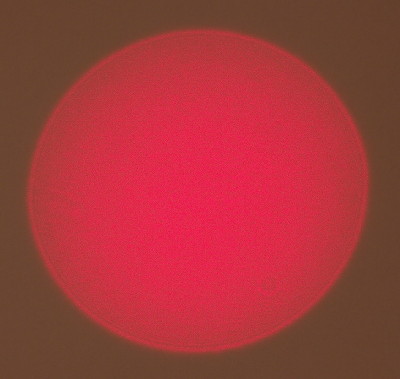

Slight streakiness
Score:
|
|
||
|
|||
Usage
The ring turns smoothly, with a little unequal resistance. Cleaning isn’t troublesome. No problems during the tests.
Summary

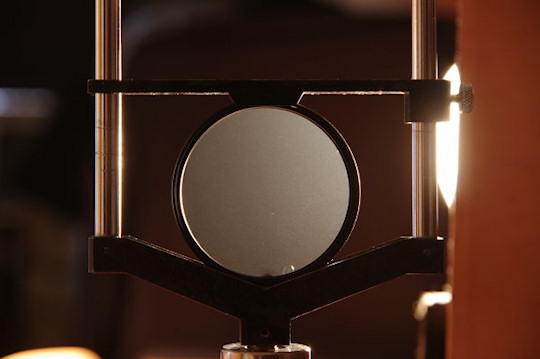

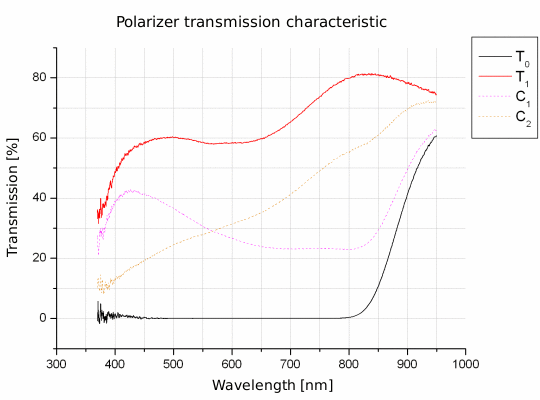

13th place in the overall ranking (24.5/37.5)The transmission curve is flat in the center of the visible light spectrum. Violet is more and red less absorbed. The extinction coefficient of around 1.3/10000 is very good for a foil polarizer. Extinguishing equal in the whole visible range. C1 and C2 graphs indicate that we’re dealing with a quarter-wave plate of zeroth order designed for the middle of visible spectrum. The filter introduces large scattering. Even though the antireflection coatings work well, halo can be seen around light sources. The level of this aberration is so high that it significantly influences the total transmission. This shouldn't happen in such expensive polarizer from an acknowledged manufacturer.
Filter for tests was lent by Pstryk.pl
